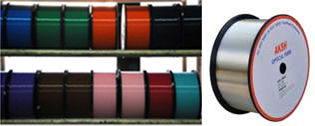

They are the most common single mode fibre in the world. It is tuned to minimize the dispersion around the wavelength at 1310nm. 1550nm wavelength can be used for shorter distance or with dispersion compensating fibre.

This single mode fibre has low water peak, characterized by the attenuation at 1383nm being less than the attenuation at 1310nm. Due to Its low water peak characteristics and excellent stability performance against hydrogen, it is suitable for entire wavelength range from 1260nm to 1625 nm. This fibre is fully compliant with ITU-T 652D.

This is wide band transport fibre which has positive or negative dispersion intensity. The reason for that is to reduce the non-linear phenomenon which interferes with the adjacent wavelength in DWDM system.

It is a single mode fibre with low bend sensitivity across the overall bandwidth (1260-1625). It offers optimized bend performance for Fibre to the Home (FTTH), enterprise networks, or any application where small bend diameters may be encountered. It is fully compliant to the new ITU-T G657

Transmission speeds/distances limits are 100 Mbit/s up to 2 km, 1 Gbit/s for distances up to 500-600meters, and 10Gbit/s for distances up to 300 meters. These are widely deployed in premises application & easily support applications ranging from Ethernet (10 Mbit/s) to Gigabit Ethernet (1 Gbit/s) and, because of their relatively large core size, are ideal for use with LED transmitters. They support more than one propagation mode, hence it is limited by modal dispersion.

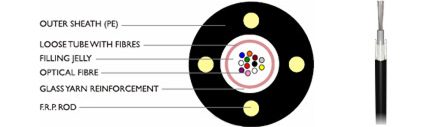

Duct Cable is designed to be pulled into ducts in service ducts of an optical cable communication network. Its non-metallic characteristic enables it to be installed in an environment where there is electrical interference, for example alongside power lines. The cable design is available in unitube (up to 24 loose fibres), multitube (up to 144 fibres) fibre ribbon cable (48 to 576 fibres). The design is lightweight and flexible and able to withstand normal installation forces of strain, crush, bend and twist. Aramid or glass yarn can be added for extra axial pulling strength and glass yarn or polyamide can be used as protection against rodents.

Duct Cable is designed to be pulled into ducts in service ducts of an optical cable communication network. Its non-metallic characteristic enables it to be installed in an environment where there is electrical interference, for example alongside power lines. The cable design is available in unitube (up to 24 loose fibres), multitube (up to 144 fibres) fibre ribbon cable (48 to 576 fibres). The design is lightweight and flexible and able to withstand normal installation forces of strain, crush, bend and twist. Aramid or glass yarn can be added for extra axial pulling strength and glass yarn or polyamide can be used as protection against rodents.

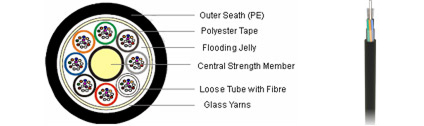

The cable has multiple loose tubes containing optical fibres and jelly. Loose tubes are S-Z stranded around non metallic central strength member (FRP). Suitable for blowing in ducts/uPVC pipes. MEETS IEC 60794, EIA/TIA, ITU-T, EN 1870000, RUS 1755.900 & Telecodia GR-20 International standards.

Options Available Nylon/LSZH/FRPE as outer Jacketing Available. Customized designs are available on request. Fibre options: SM (G652B/D, G655 & G657), MM (OM1, OM2 & OM3) Dry core construction (non jelly) is optional. Rip Cord is optional. Composite of various types of fibres (SM & MM). Metallic central strength member option available. Higher fibre count cable designs are available on request.

Duct Cable is designed to be pulled into ducts in service ducts of an optical cable communication network. Its non-metallic characteristic enables it to be installed in an environment where there is electrical interference, for example alongside power lines. The cable design is available in unitube (up to 24 loose fibres), multitube (up to 144 fibres) fibre ribbon cable (48 to 576 fibres). The design is lightweight and flexible and able to withstand normal installation forces of strain, crush, bend and twist. Aramid or glass yarn can be added for extra axial pulling strength and glass yarn or polyamide can be used as protection against rodents.

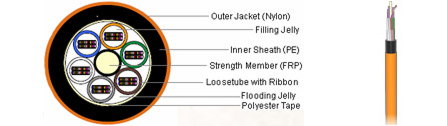

Loose tubes containing fibres encapsulated in ribbon shape are S - Z stranded around a central strength members, sheathed with HDPE and an optional Nylon 12 Jacket. A ribbon cable is suitable for high fibre count and reduces slicing time. Suitable for blowing in ducts/uPVC pipes. MEETS IEC 60794, EIA/TIA, ITU-T, EN 1870000, RUS 1755.900 & Telecodia GR-20 International standards.

Options Available Nylon/LSZH/FRPE as outer Jacketing Available. Customized designs are available on request. Fibre options: SM (G652B/D, G655 & G657), MM (OM1, OM2 & OM3) Dry core construction (non jelly) is optional. Rip Cord is optional. Composite of various types of fibres (SM & MM). Metallic central strength member option available. Higher fibre count cable designs are available on request.

Direct Burial Cable is designed to be placed directly under the ground either by trenching or ploughing. The metallic cable is armoured with corrugated steel tape that provides good protection against rodents and allows the cable to retain outstanding flexibility for easy installation. The cable design is available in unitube (up to 24 fibres) and multitube single sheathed/ double sheathed construction (up to 96 fibres).

Loose tube containing fibres and jelly is centrally located and additional glass reinforcements are applied to provide high tensile strength and cushion loose tube. Armour of corrugated steel tape provides high crush resistance & tensile strength. Steel wire strength members are embedded in HDPE sheath to provide extra tensile strength. The corrugated steel tape is co-polymer coated at both sides. ECCS Tape armouring provides excellent rodent /rough terrain protection. Meets IEC 60794, EIA/TIA, ITU-T, EN 187000, RUS 1755.900 & Telecodia GR-20 International standards.
Options Available LSZH/FRPE as outer Jacketing Available. Customized designs are available on request. Fibre options: SM (G652B/D, G655 & G657), MM (OM1, OM2 & OM3) Dry core construction (non jelly) is optional. Rip Cord is optional. Composite of various types of fibres (SM & MM). Metallic central strength member option available. Higher fibre count cable designs are available on request.

Direct Burial Cable is designed to be placed directly under the ground either by trenching or ploughing. The metallic cable is armoured with corrugated steel tape that provides good protection against rodents and allows the cable to retain outstanding flexibility for easy installation. The cable design is available in unitube (up to 24 fibres) and multitube single sheathed/ double sheathed construction (up to 96 fibres).

Loose tube containing fibres and jelly are stranded around a central strength member (FRP). Armour of corrugated steel tape provides the necessary strength required for direct burial applications. The corrugated steel tape is co-polymer coated at both sides. ECCS Tape armouring provides excellent rodent /rough terrain protection. Meets IEC 60794, EIA/TIA, ITU-T, EN 187000, RUS 1755.900 & Telecodia GR-20 International standards.
Options Available LSZH/FRPE as outer Jacketing Available. Customized designs are available on request. Fibre options: SM (G652B/D, G655 & G657), MM (OM1, OM2 & OM3) Dry core construction (non jelly) is optional. Rip Cord is optional. Composite of various types of fibres (SM & MM). Metallic central strength member option available. Higher fibre count cable designs are available on request.

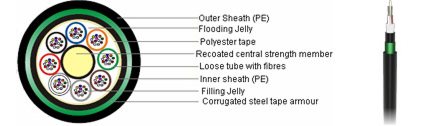

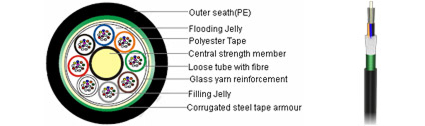

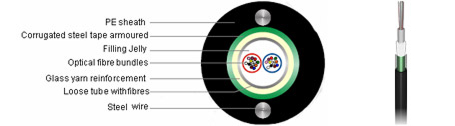

Direct Burial Cable is designed to be placed directly under the ground either by trenching or ploughing. The metallic cable is armoured with corrugated steel tape that provides good protection against rodents and allows the cable to retain outstanding flexibility for easy installation. The cable design is available in unitube (up to 24 fibres) and multitube single sheathed/ double sheathed construction (up to 96 fibres).

The corrugated steel tape is co-polymer coated at both sides. ECCS Tape armouring provides excellent rodent /rough terrain protection. Meets IEC 60794, EIA/TIA, ITU-T, EN 187000, RUS 1755.900 & Telecodia GR-20 International standards.
Options Available LSZH/FRPE as outer Jacketing Available. Customized designs are available on request. Fibre options: SM (G652B/D, G655 & G657), MM (OM1, OM2 & OM3) Dry core construction (non jelly) is optional. Rip Cord is optional.

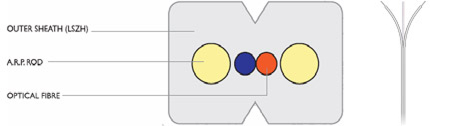

Suitable for aerial installation to the end connectivity up to home.

The 2 fibres embedded in LSZH sheath between 2 ARP rods which can be taken out easily from the LSZH sheath. This is suitable for the successful indoor installation in any type of civil structures.
Options Available Customized designs are available on request. Fibre options: SM (G652B/D, G655 & G657), MM (OM1, OM2 & OM3) Composite of various types of fibres (SM & MM) Metallic strength member option available. Higher fibre count cable designs are available on request.

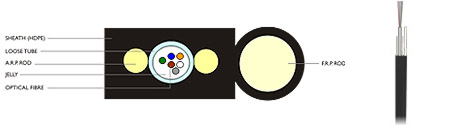

Suitable for aerial installation to the end connectivity up to home.

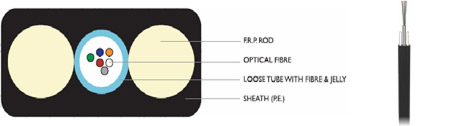

Loose tube containing the fibres and jelly is protected by two FRP rods and sheathed with tough weather resistant HDPE.
Options Available Customized designs are available on request. Fibre options: SM (G652B/D, G655 & G657), MM (OM1, OM2 & OM3) Composite of various types of fibres (SM & MM) Metallic strength member option available. Higher fibre count cable designs are available on request.

Suitable for aerial installation to the end connectivity up to home.

Loose tube containing fibres and jelly is placed between two aramid FRP rods. One GFRP rod provides extra tensile strength for aerial installation. This cable is good for last mile FTTH connectivity using poles.
Options Available Customized designs are available on request. Fibre options: SM (G652B/D, G655 & G657), MM (OM1, OM2 & OM3) Composite of various types of fibres (SM & MM) Metallic strength member option available. Higher fibre count cable designs are available on request.

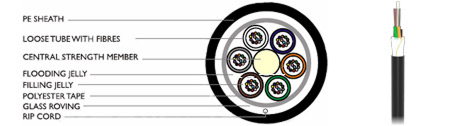

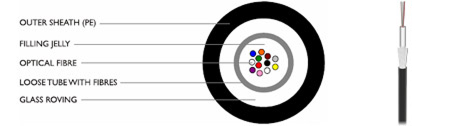

Another option for direct burial installation is Glass Armoured Cable. This cable is armoured with glass roving tape that provides good protection against rodents and allows the cable to retain outstanding flexibility for easy installation.

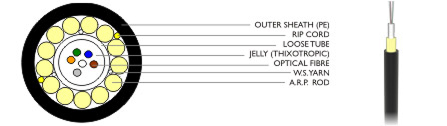

Used mainly in indoor /outdoor with PE/LSZH sheath for long time performance.
Options Available Nylon/LSZH/FRPE as outer Jacketing Available. Customized designs are available on request. Fibre options: SM (G652B/D, G655 & G657), MM (OM1, OM2 & OM3) Dry core construction (non jelly) is optional. Rip Cord is optional. Composite of various types of fibres (SM & MM). Metallic central strength member option available. Higher fibre count cable designs are available on request.

Another option for direct burial installation is Glass Armoured Cable. This cable is armoured with glass roving tape that provides good protection against rodents and allows the cable to retain outstanding flexibility for easy installation.

Used mainly in indoor /outdoor with PE/LSZH sheath for long time performance.
Options Available Nylon/LSZH/FRPE as outer Jacketing Available. Customized designs are available on request. Fibre options: SM (G652B/D, G655 & G657), MM (OM1, OM2 & OM3) Dry core construction (non jelly) is optional. Rip Cord is optional. Composite of various types of fibres (SM & MM). Metallic central strength member option available. Higher fibre count cable designs are available on request.

Aerial Cable is designed with integral bearer for installation on utility poles of an optical cable communication network. The cable design is available in unitube (up to 24 loose fibers), multitube design- single sheath construction (up to 144 fibres) and multitube design- double sheath construction (up to 96 fibres) and figure-8 design. The design is lightweight and flexible and able to withstand normal installation forces of strain, crush, bend and twist.
All Dielectric Self Supporting (ADSS) cable is designed for installation on poles with maximum span of 100 meters. It can be supplied with loose and ribbon fiber or both. The aramide yarn strength member and the radial shape of the slotted core profile provide an effective protection against tension and radial forces applied by the cable fittings. Being completely dielectric, the cable can be installed parallel with power lines.

Light weight permits larger spans. Ideal for direct installation on poles and buildings. Meets IEC 60794, EIA/TIA, ITU t, EN 187000, RUS 1755.900 & Telecodia GR-20 International standards. Suitable to install up to 125 KV electrical lines.
Options Available Nylon/LSZH/FRPE as outer Jacketing Available. Customized designs are available on request. Fibre options: SM (G652B/D, G655 & G657), MM (OM1, OM2 & OM3) Dry core construction (non jelly) is optional. Rip Cord is optional. Composite of various types of fibres (SM & MM). Metallic central strength member option available. High strength cable construction is available on request. Higher fibre count cable designs are available on request. A track resistance sheath for use within high voltage transmission line.

Aerial Cable is designed with integral bearer for installation on utility poles of an optical cable communication network. The cable design is available in unitube (up to 24 loose fibers), multitube design- single sheath construction (up to 144 fibres) and multitube design- double sheath construction (up to 96 fibres) and figure-8 design. The design is lightweight and flexible and able to withstand normal installation forces of strain, crush, bend and twist.
All Dielectric Self Supporting (ADSS) cable is designed for installation on poles with maximum span of 100 meters. It can be supplied with loose and ribbon fiber or both. The aramide yarn strength member and the radial shape of the slotted core profile provide an effective protection against tension and radial forces applied by the cable fittings. Being completely dielectric, the cable can be installed parallel with power lines.

Loose tubes containing fibres and jelly are S-Z stranded around a central strength member. A layer of non metallic member (aramid yarn) provides the extra tensile strengths required for aerial installations on poles. Light weight permits larger spans. Ideal for direct installation on poles and buildings. Meets IEC 60794, EIA/TIA, ITU t, EN 187000, RUS 1755.900 & Telecodia GR-20 International standards. Suitable to install up to 125 KV electrical lines.
Options Available Nylon/LSZH/FRPE as outer Jacketing Available. Customized designs are available on request. Fibre options: SM (G652B/D, G655 & G657), MM (OM1, OM2 & OM3) Dry core construction (non jelly) is optional. Rip Cord is optional. Composite of various types of fibres (SM & MM). Metallic central strength member option available. High strength cable construction is available on request. Higher fibre count cable designs are available on request. A track resistance sheath for use within high voltage transmission line.

Aerial Cable is designed with integral bearer for installation on utility poles of an optical cable communication network. The cable design is available in unitube (up to 24 loose fibers), multitube design- single sheath construction (up to 144 fibres) and multitube design- double sheath construction (up to 96 fibres) and figure-8 design. The design is lightweight and flexible and able to withstand normal installation forces of strain, crush, bend and twist.
All Dielectric Self Supporting (ADSS) cable is designed for installation on poles with maximum span of 100 meters. It can be supplied with loose and ribbon fiber or both. The aramide yarn strength member and the radial shape of the slotted core profile provide an effective protection against tension and radial forces applied by the cable fittings. Being completely dielectric, the cable can be installed parallel with power lines.

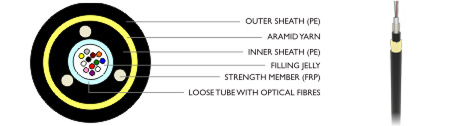

Loose Tube containing fibres and jelly is centrally located. The strength members (FRP) are embedded in the HDPE sheath. A layer of non metallic strength member (aramid yarn) between the inner and outer HDPE sheath provides the extra tensile strengths required for aerial installations. Light weight permits larger spans. Ideal for direct installation on poles and buildings. Meets IEC 60794, EIA/TIA, ITU t, EN 187000, RUS 1755.900 & Telecodia GR-20 International standards. Suitable to install up to 125 KV electrical lines. Options Available Nylon/LSZH/FRPE as outer Jacketing Available. Customized designs are available on request. Fibre options: SM (G652B/D, G655 & G657), MM (OM1, OM2 & OM3) Dry core construction (non jelly) is optional. Rip Cord is optional. Composite of various types of fibres (SM & MM). Metallic central strength member option available. High strength cable construction is available on request. Higher fibre count cable designs are available on request. A track resistance sheath for use within high voltage transmission line.

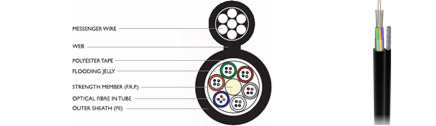

Smartcore Aerial Cable is designed with integral bearer for installation on utility poles of an optical cable communication network. The cable design is available in unitube (up to 24 loose fibers), multitube design- single sheath construction (up to 144 fibres) and multitube design- double sheath construction (up to 96 fibres) and figure-8 design. The design is lightweight and flexible and able to withstand normal installation forces of strain, crush, bend and twist.
All Dielectric Self Supporting (ADSS) cable is designed for installation on poles with maximum span of 100 meters. It can be supplied with loose and ribbon fiber or both. The aramide yarn strength member and the radial shape of the slotted core profile provide an effective protection against tension and radial forces applied by the cable fittings. Being completely dielectric, the cable can be installed parallel with power lines.

The loose tubes containing fibres and jelly are S-Z stranded around a central strength member. A bunch of stranded steel wires are sheathed with core to make the figure-8 construction, ideal for aerial installation.
Light weight permits larger spans. Ideal for direct installation on poles and buildings. Meets IEC 60794, EIA/TIA, ITU t, EN 187000, RUS 1755.900 & Telecodia GR-20 International standards. Suitable to install up to 125 KV electrical lines.
Options Available Nylon/LSZH/FRPE as outer Jacketing Available. Customized designs are available on request. Fibre options: SM (G652B/D, G655 & G657), MM (OM1, OM2 & OM3) Dry core construction (non jelly) is optional. Rip Cord is optional. Composite of various types of fibres (SM & MM). Metallic central strength member option available. High strength cable construction is available on request. Higher fibre count cable designs are available on request. A track resistance sheath for use within high voltage transmission line.

Brining fibre optics to the homes of India was one of our aim and we are proud to say that we achieved it successfully. AKSH has a number of blown fibre cables and micro cables suitable for Fibre-To-The Home (FTTH) applications for the installation into duct/micro ducts. Extending optical fibre’s reach directly to the residence/business is the next logical step to provide high-speed broadband services (such as high speed data, delivering voice services, and high quality video (TPS: Triple play service).

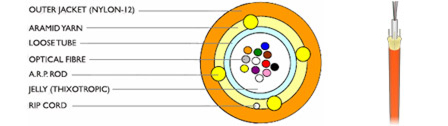

The cable is used for blowing into micro ducts. The loose tube contains fibres, aqua block and strength member (ARP rod). Small diameter, light weight, easy to install. Nylon-12 as outer sheath for increased blowing distance. Ripcord added for easier sheath removal. Meets IEC 60794, EIA/TIA, ITU-T, EN 187000, RUS 1755.900 & Telecodia GR-20 International standards. To be blown into ducts/micro ducts of different sizes for longer distances.
Options Available HDPE sheath as outer jacketing available. Fibre options: SM (G652B/D, G655 & G657), MM (OM1, OM2 & OM3) Composite of various types of fibres (SM & MM) Metallic central strength member option available. Higher fibre count cable designs are available on request.

Brining fibre optics to the homes of India was one of our aim and we are proud to say that we achieved it successfully. AKSH has a number of blown fibre cables and micro cables suitable for Fibre-To-The Home (FTTH) applications for the installation into duct/micro ducts. Extending optical fibre’s reach directly to the residence/business is the next logical step to provide high-speed broadband services (such as high speed data, delivering voice services, and high quality video (TPS: Triple play service).

Strength members (ARP rods) are placed around loose tube to give added rigidity and tensile strength. Small diameter, light weight, easy to install. Nylon-12 as outer sheath for increased blowing distance. Ripcord added for easier sheath removal. Meets IEC 60794, EIA/TIA, ITU-T, EN 187000, RUS 1755.900 & Telecodia GR-20 International standards. To be blown into ducts/micro ducts of different sizes for longer distances.
Options Available HDPE sheath as outer jacketing available. Fibre options: SM (G652B/D, G655 & G657), MM (OM1, OM2 & OM3) Composite of various types of fibres (SM & MM) Metallic central strength member option available. Higher fibre count cable designs are available on request.

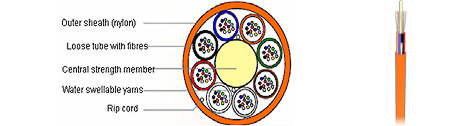

Brining fibre optics to the homes of India was one of our aim and we are proud to say that we achieved it successfully. AKSH has a number of blown fibre cables and micro cables suitable for Fibre-To-The Home (FTTH) applications for the installation into duct/micro ducts. Extending optical fibre’s reach directly to the residence/business is the next logical step to provide high-speed broadband services (such as high speed data, delivering voice services, and high quality video (TPS: Triple play service).

Loose tubes containing fibres and jelly are S-Z stranded around a central strength member and jacketed with nylon12 material. Small diameter, light weight, easy to install. Nylon-12 as outer sheath for increased blowing distance. Ripcord added for easier sheath removal. Meets IEC 60794, EIA/TIA, ITU-T, EN 187000, RUS 1755.900 & Telecodia GR-20 International standards. To be blown into ducts/micro ducts of different sizes for longer distances.
Options Available HDPE sheath as outer jacketing available. Fibre options: SM (G652B/D, G655 & G657), MM (OM1, OM2 & OM3) Composite of various types of fibres (SM & MM) Metallic central strength member option available. Higher fibre count cable designs are available on request.

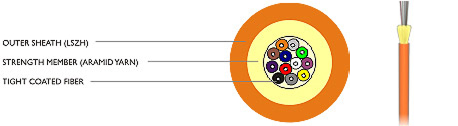

Indoor cables are flexible, non-gel filled cable for use in telecommunication stations for interconnection between the optical line system and the fiber distribution frame. It is also suitable for data networks. The sheath is made of PVC that has good tensile strength and tear resistance. The cable can be terminated with a wide variety of connectors. Simplex design is supplied with one tight buffered fiber (in single-mode and/or multi-mode) whereas Duplex Design is supplied with two tight buffered fibers, single-mode or multi-mode.

These tight-buffered cables are designed for indoor inter-equipment connections. The inside cable is used for installation through a duct or conduit or can be placed on ceiling walls. Also suitable for computer data or TV links, home automation system, terminal link and internal connections. High strength good bending performance, easy to operate and splice. With tight structure, light, weight, small dimension and high tensile strength, it facilitates flexible installations. Aramid Yarn reinforcement for ruggedized protection. Flame retardant. Easy to strip & terminate. Meets IEC 60794, EIA/TIA, ITU-T, EN 187000, RUS 1755.900 & International standards.
Options Available Tight Buffered coating material: Nylon/PVC/LSZH. Customized designs are available on request. Fibre options: SM (G652B/D, G655 & G657), MM (OM1, OM2 & OM3) Loose tube design also available with Glass Yarns.

Indoor cables are flexible, non-gel filled cable for use in telecommunication stations for interconnection between the optical line system and the fiber distribution frame. It is also suitable for data networks. The sheath is made of PVC that has good tensile strength and tear resistance. The cable can be terminated with a wide variety of connectors. Simplex design is supplied with one tight buffered fiber (in single-mode and/or multi-mode) whereas Duplex Design is supplied with two tight buffered fibers, single-mode or multi-mode.

Aramid Yarn reinforcement for ruggedized protection. Flame retardant. Easy to strip & terminate. Meets IEC 60794, EIA/TIA, ITU-T, EN 187000, RUS 1755.900 & International standards.
Options Available Tight Buffered coating material: Nylon/PVC/LSZH. Customized designs are available on request. Fibre options: SM (G652B/D, G655 & G657), MM (OM1, OM2 & OM3) Loose tube design also available with Glass Yarns.

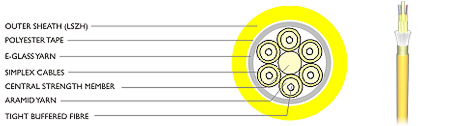

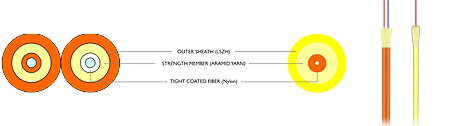

Indoor cables are flexible, non-gel filled cable for use in telecommunication stations for interconnection between the optical line system and the fiber distribution frame. It is also suitable for data networks. The sheath is made of PVC that has good tensile strength and tear resistance. The cable can be terminated with a wide variety of connectors. Simplex design is supplied with one tight buffered fiber (in single-mode and/or multi-mode) whereas Duplex Design is supplied with two tight buffered fibers, single-mode or multi-mode.

Simplex cables are stranded around central strength member and outer sheath is LSZH. Aramid Yarn reinforcement for ruggedized protection. Flame retardant. Easy to strip & terminate. Meets IEC 60794, EIA/TIA, ITU-T, EN 187000, RUS 1755.900 & International standards.
Options Available Tight Buffered coating material: Nylon/PVC/LSZH. Customized designs are available on request. Fibre options: SM (G652B/D, G655 & G657), MM (OM1, OM2 & OM3) Loose tube design also available with Glass Yarns.

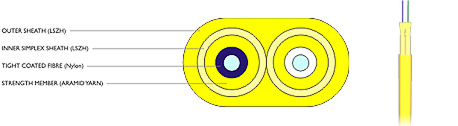

Indoor cables are flexible, non-gel filled cable for use in telecommunication stations for interconnection between the optical line system and the fiber distribution frame. It is also suitable for data networks. The sheath is made of PVC that has good tensile strength and tear resistance. The cable can be terminated with a wide variety of connectors. Simplex design is supplied with one tight buffered fiber (in single-mode and/or multi-mode) whereas Duplex Design is supplied with two tight buffered fibers, single-mode or multi-mode.

Tight buffered fibres with Nylon up to 900microns, strength member Aramid yarn and overall jacketed with LSZH. Aramid Yarn reinforcement for ruggedized protection. Flame retardant. Easy to strip & terminate. Meets IEC 60794, EIA/TIA, ITU-T, EN 187000, RUS 1755.900 & International standards.
Options Available Tight Buffered coating material: Nylon/PVC/LSZH. Customized designs are available on request. Fibre options: SM (G652B/D, G655 & G657), MM (OM1, OM2 & OM3) Loose tube design also available with Glass Yarns.

Indoor cables are flexible, non-gel filled cable for use in telecommunication stations for interconnection between the optical line system and the fiber distribution frame. It is also suitable for data networks. The sheath is made of PVC that has good tensile strength and tear resistance. The cable can be terminated with a wide variety of connectors. Simplex design is supplied with one tight buffered fiber (in single-mode and/or multi-mode) whereas Duplex Design is supplied with two tight buffered fibers, single-mode or multi-mode.

Loose tube containing fibres filled with jelly surrounded by strength member aramid yarn & overall jacketed with LSZH. Aramid Yarn reinforcement for ruggedized protection. Flame retardant. Easy to strip & terminate. Meets IEC 60794, EIA/TIA, ITU-T, EN 187000, RUS 1755.900 & International standards.
Options Available Tight Buffered coating material: Nylon/PVC/LSZH. Customized designs are available on request. Fibre options: SM (G652B/D, G655 & G657), MM (OM1, OM2 & OM3) Loose tube design also available with Glass Yarns.

High performance Optical fibres are placed in gel-filled buffer tubes which are stranded around a dielectric central member. Water blocking tape is added to eliminate water ingress & migration. Periphere strength members are included to provide appropriate pulling tension performance. An insulated pair of copper conductor is used as one of the stranding, elements for power transmissions to energies line components.
Options Available Nylon/LSZH/FRPE as outer Jacketing Available. Customized designs are available on request. Fibre options: SM (G652B/D, G655 & G657), MM (OM1, OM2 & OM3) Dry core construction (non jelly) is optional. Rip Cord is optional. Composite of various types of fibres (SM & MM). Metallic central strength member option available. High fibre count cable designs are available on request.

The loose tube containing fibres and jelly is protected by strength members aramid reinforced plastic rod. The ARP rod makes cable very flexible and provides good tensile strength and crush resistance. The cable can be installed on electric poles or directly buried or blown in ducts. The light weight and flexibility makes it ideal for FTTH application.
Options Available Nylon/LSZH/FRPE as outer Jacketing Available. Customized designs are available on request. Fibre options: SM (G652B/D, G655 & G657), MM (OM1, OM2 & OM3) Dry core construction (non jelly) is optional. Rip Cord is optional. Composite of various types of fibres (SM & MM). Metallic central strength member option available. High fibre count cable designs are available on request.

The loose tube containing fibres and jelly is protected by dielectric rigid ceramic armour and sheathed with HDPE. This cable is non-metallic, rodent proof, moisture resistant with very high tensile and crush resistance. This cable can be used for aerial, direct burial and duct installation.
Options Available Nylon/LSZH/FRPE as outer Jacketing Available. Customized designs are available on request. Fibre options: SM (G652B/D, G655 & G657), MM (OM1, OM2 & OM3) Dry core construction (non jelly) is optional. Rip Cord is optional. Composite of various types of fibres (SM & MM). Metallic central strength member option available. High fibre count cable designs are available on request.

Options Available Nylon/LSZH/FRPE as outer Jacketing Available. Customized designs are available on request. Fibre options: SM (G652B/D, G655 & G657), MM (OM1, OM2 & OM3) Dry core construction (non jelly) is optional. Rip Cord is optional. Composite of various types of fibres (SM & MM). Metallic central strength member option available. High fibre count cable designs are available on request.

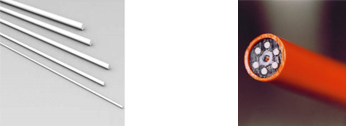

Di-electric cable composite strength member widely known as FRP/GRP rod is designed to provide excellent strength performance while maintaining high degree of stiffness, preventing cable buckling over its entire service life. Light weight and excellent tensile strength Prevents cable buckling Most suited for multi-loose tube, uni-tube, slotted core and ribbon cable designs Used as central or peripheral reinforcement in fibre optic cable Dual Advantage: Reinforcement during installation as well as reduce stress on signal carrying optic fibre/conductor Prevent sagging in aerial installation Cost effective solution as a strength member.
Product Range AKSH produces a wide array of sizes as per customer specifications with diameter ranging from 0.4mm to 6.5mm Options Available AKSH FRP is available in various coatings including EAA (Ethylene Acrylic Acid) and HDPE, which allows easy handling and better grip to the cables.

ARP rods are non-metallic composites designed primarily for use as a central strength member in fiber optic cables. ARP rods offer high tensile strength & better bending properties with minimum weight. Thus, ARP rods are ideal for cable designs for FTTH application where the cables are subjected to sharp bends. These are also ideal for all dielectric cable configurations where placement close to power lines is common. An excellent choice for high temperature environments. Light weight and high strength Low expansion. ARP has a low coefficient of thermal expansion than steel wire and GFRP in a wider temperature range Impact and break resistance. ARP has much higher tensile strength (1528 MPa). The remained tensile strength could be 1300MPa even it is broken Good flexibility. ARP is flexible and easy to bend. Its minimum bending radius is 24 times of the diameter of ARP rod Enables the cable to be compact, aesthetic and flexible, especially for the indoor layouts. On these rods EAA coating (Ethylene Acrylic Acid) is done, which allows easy handling and provides better adhesion properties.
Product Range AKSH produces a wide array of sizes as per customer specifications; 0.4mm & 0.5 mm being the most common.

Teleglass WB is E-glass reinforcement coated with super absorbent resin. It eliminates flooding gels & tapes from fibre optic cables. Teleglass WB swells to form gel as it comes in contact with water and stops further flow into cable jacket. It has good abrasion resistance and easy handling properties.

The water-blocking yarns are developed with superabsorbent en-swell fibres
Made with abrasion resistant resin for easy handling and enhanced flexibility It can absorb water quickly and blocks further seepage of water into the cable core In the production of optical fibre cable, it acts as a replacement of filling compounds, water blocking tapes or common yarns. It is used in optical fibre cables as reinforcement to improve tensile strength and rodent protection properties.
Product Range AKSH Teleglass is available in 600Tex, 735Tex, 800Tex, 1200Tex & 2400Tex

Teleglass SS is coated E-glass with soft, abrasion resistant resin for easy handling and enhanced flexibility. It is used in optical fibre cables as reinforcement to improve tensile strength and rodent protection properties.

The Teleglass SS yarns are
Made with abrasion resistant resin for easy handling and enhanced flexibility In the production of optical fibre cables used as reinforcement to improve tensile strength and rodent protection properties.
Product Range AKSH provides the yarn in 300 TEX, 600 TEX, 800 TEX, 1200 TEX and 2400 TEX.

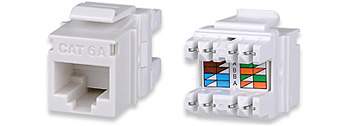

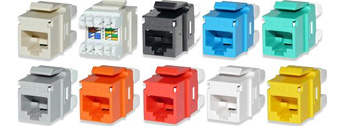

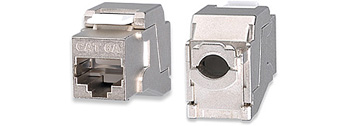

Category 6A unscreened high-density keystone jacks have been designed to meet the need for today's high-bandwidth applications. Category 6A connectors are slim in profile for the highest density applications, and are engineered to exceed all ANSI/TIA-568-C.2 category 6A requirements. Jacks support both T568A and T568B wiring schemes for maximum flexibility using an easy-to-read color-code wiring label. Special design features allow jack to be terminated with a standard 110 single-position tool or with the Signamax four-pair tool. The connec-tors contact design provides enhanced plug-to-jack connection integrity, protects against damage caused by insertion of 4- or 6-position plugs and is rated for a minimum of 750 plug insertions providing for the highest level of system reliability. Jacks feature the ability to mount either color-coded icons for service identification or dust covers to protect unused jacks from dust and other contaminants. Rear 110 contacts provide improved conductor retention and ease of termination. Jacks are supplied with a metallized plastic cable retention cap, which eliminates alien crosstalk for maximum performance.

Guaranteed to meet or exceed TIA-568-C.2 component performance Rated for at least 750 plug insertions providing for the highest level of system reliability Supports TIA-568-C.2 category 6A 100-meter channel performance Contact design provides enhanced plug-to-jack connection integrity and protects against damage caused by insertion of 4- or 6-position plugs Multi-purpose keystone design - equally suitable as a work area outlet and a patch panel port T568A and T568B wiring with an easy-to-read color-code wiring label for maximum flexibility 180° high density - compatible with all Signamax keystone faceplates, surface mount boxes, and snap-in patch panels Have an ability to mount either color-coded icon tabs for service identification or dust covers to protect unused jacks form dust and other contaminants Rear 110 type contacts provide improved wire retention and ease of termination Terminated with standard single-position 110 or Signamax four-pair termination tools

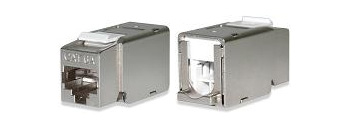

Category 6A Screened Jacks are designed for the same high level of performance standards as our unscreened (UTP) jacks. This uniquely designed connector features a toolless termination method for quick and easy installation. The connectors contact design provides enhanced plug-to-jack connection integrity and is rated for a minimum of 750 plug insertions providing for the highest level of reliability. Jacks are fully shielded to optimize protection from EMI including alien crosstalk.Category 6A screened keystone jacks are compatible with Signamax keystone faceplates, surface mount boxes, and 24- and 48-port screened snap-in patch panels providing flexibility in field installation and easy connection to the telecommunications bonding and grounding system.

Designed to meet IEEE 802.3an transmission requirements Support category 6A 100-meter channel performance Guaranteed to meet or exceed TIA-568-C.2 channel performance Overall solid screened design Compatible with Signamax screened snap-in patch panels Rated for at least 750 plug insertions providing for the highest level of system reliability Contact design provides enhanced plug to jack connection integrity and protects against damage caused by insertion of 4 or 6 po-sition plugs T568A and T568B wiring with an easy to read color-code wiring label for maximum flexibility 110-type contacts provide improved wire retention and ease of termination Terminated with tool-less termination cap

Signamax category 6A screened keystone jacks are designed to meet 10 Gigabit IEEE 802.3an rev. 1.0 transmission requirements, and are guaranteed to meet or exceed TIA-568-C.2 performance specifications. Screened keystone jacks with an overall overlap solid shielding design support category 6A 100-meter channel performance. Category 6A screened keystone jacks are compatible with Signamax keystone faceplates (1-, 2-, and 4-port) and snap-in patch pan-els (24-port 1-RMS and 48-port 2-RMS) providing flexibility in field installation and easy connection to the telecommunications bond-ing and grounding system.

Designed to meet 10G IEEE 802.3an transmission requirements Guaranteed to meet or exceed TIA-568-C.2 performance specifications Support category 6A 100-meter channel performance Contact design provides enhanced plug to jack connection integrity and protects against damage caused by insertion of 4 or 6 po-sition plugs 110-type contacts provide improved wire retention and ease of termination Compatible with Signamax screened snap-in patch panels Overall solid shielding design Rated for at least 750 plug insertions providing for the highest level of system reliability T568A and T568B wiring with an easy to read color-code wiring label for maximum flexibility Terminated with integrated toolless termination cap

Signamax Category 6A Keystone Jacks have been designed to meet 10 Gigabit Ethernet IEEE 802.3an rev. 1.0 transmission re-quirements and are guaranteed to exceed ANSI/TIA-568-C.2 performance specifications. Category 6A connectors are slim in profile for the highest density applications.Jacks support both T568A and T568B wiring schemes for maximum flexibility using an easy-to-read color-code wiring label and can be terminated using standard single-position 110 tool. The connectors contact design provides enhanced plug-to-jack connection in-tegrity, protects against damage caused by insertion of 4- or 6-position plugs and is rated for a minimum of 750 plug insertions pro-viding for the highest level of system reliability. Jacks feature the ability to mount either color-coded icons for service identification or dust covers to protect unused jacks from dust and other contaminants. Rear 110 contacts provide improved conductor retention and ease of termination. Jacks are supplied with a metallized plastic cable retention cap, which eliminates alien crosstalk for maximum performance.

Meet IEEE 802.3an transmission requirements Meet or exceed TIA-568-B.2-10 channel performance Support category 6A 100-meter channel performance Multi-purpose keystone design Compatible with all Signamax keystone faceplates, surface mount boxes, and snap-in patch panels Rear 110 type contacts provide improved wire retention and ease of termination erminated with standard single position 110 termination tool Equipped with end cap enclosed in copper foil eliminating alien crosstalk Rated for at least 750 plug insertions Contact design provides enhanced plug-to-jack connection integrity and protects against damage caused by insertion of 4 or 6 po-sition plugs T568A and T568B wiring with an easy to read color-code wiring label Ability to mount either color-coded icon tabs or dust covers.

Category 6 keystone screened feed-thru couplers can be used as a second piece of connecting hardware when a cross-connection is needed for active equipment connection to the cabling, and as a consolidation point in the open office environment. Feed-thru cou-plers meet requirements as defined in TIA/EIA-568-C.2 and provide a sound platform for supporting today's network technologies in-cluding Gigabit Ethernet. These high-density feed-thru couplers are compatible with all Signamax faceplates, surface mount multime-dia boxes and Signamax 24- and 48-port high density snap-in patch panels providing flexibility in field installation.

Applications - cross-connections, horizontal cabling consolidation points, horizontal cabling connection point in building automation cabling Contact design provides enhanced plug-to-jack connection integrity and protects against damage caused by insertion of 4- or 6-position plugs Rated for at least 750 plug insertions Compatible with T568A and T568B cabling

Category 6 Screened Jacks are designed for the same high level of performance standards as our unscreened jacks. This slim in pro-file jack is designed for the highest density applications, and is engineered to exceed all ANSI/TIA-568-C.2 category 6 requirements. Jacks are fully shielded to optimize protection from EMI. Jacks support both T568A and T568B wiring schemes using an easy-to-read color-code wiring label and can be terminated using standard single-position 110 tools. The connectors contact design provides enhanced plug-to-jack connection integrity, protects against damage caused by insertion of 4- or 6-position plugs and is rated for a minimum of 750 plug insertions providing for the highest level of reliability. Rear 110-type contacts are designed to provide improved conductor retention and ease of termination. Jacks feature the ability to mount either color-coded icon tabs for service identification or dust covers to protect unused jacks from dust and other contaminants. Jacks are supplied with two color-matched icon tabs and dust covers for voice or data identification.

Multi-purpose keystone design T568A and T568B wiring with a color-code wiring label Termination with standard single-position 110 termination tool Rear 110-type contacts provide improved wire retention and ease of termination Contact design provides enhanced plug-to-jack connection integrity and protects against damage caused by insertion of 4 or 6 po-sition plugs Ability to mount either color-coded icon tabs for service identification or dust covers Rated for at least 750 plug insertions Supplied with three color-matched icon tabs and dust covers

Signamax category 6 screened toolless keystone jack is designed to exceed TIA-568-C.2 performance specifications. Screened key-stone jacks with an overall overlap solid shielding design are capable to guarantee 100-meter four-connector channel performance in environments with elevated EMI levels. Category 6 screened toolless keystone jack is compatible with Signamax keystone faceplates (1-, 2-, and 4-port) and snap-in patch panels (24-port 1-RMS and 48-port 2-RMS) providing flexibility in field installation and easy connection to the telecommunications bonding and grounding system.

Guaranteed to meet or exceed TIA-568-C.2 component performance Supports TIA-568-C.2 category 6 100-meter channel performance Multi-purpose keystone design - equally suitable as a work area outlet and a patch panel port High density - compatible with Signamax keystone faceplates and snap-in screened and unscreened patch panels Overall solid screening design Toolless - does not require standard or any other termination tools T568A and T568B wiring with an easy-to-read color-code wiring label for maximum flexibility 110-type contacts provide improved wire retention and ease of termination Contact design provides enhanced plug-to-jack connection integrity and protects against damage caused by insertion of 4- or 6-position plugs Rated for at least 750 plug insertions providing for the highest level of system reliability

Category 6 keystone feed-thru couplers can be used as a second piece of connecting hardware when a cross-connection is needed for active equipment connection to the cabling, and as a consolidation point in the open office environment. Feed-thru couplers meet re-quirements as defined in TIA/EIA-568-C.2 and provide a sound platform for supporting today's network technologies including Gigabit Ethernet. These high-density feed-thru couplers are compatible with all Signamax faceplates, surface mount multimedia boxes and Signamax 24- and 48-port high density snap-in patch panels providing flexibility in field installation.

Contact design provides enhanced plug-to-jack connection integrity and protects against damage caused by insertion of 4- or 6-position plugs Applications - cross-connections, horizontal cabling consolidation points, horizontal cabling connection point in building automation cabling Rated for at least 750 plug insertions Compatible with T568A and T568B cabling

Category 6 Keystone Jacks have been designed to meet the need for today's high-bandwidth applications. Category 6 connectors are slim in profile for the highest density applications, and are engineered to exceed all ANSI/TIA-568-C.2 category 6 requirements. Jacks support both T568A and T568B wiring schemes using an easy-to-read color-code wiring label and can be terminated using standard single-position 110 tools. The connectors contact design provides enhanced plug-to-jack connection integrity, protects against damage caused by insertion of 4- or 6-position plugs and is rated for a minimum of 750 plug insertions providing for the highest level of reliability. Rear 110-type contacts are designed to provide improved conductor retention and ease of termination. Special design features allow jack to be terminated with a standard 110 single-position tool or with the Signamax four-pair tool. Jacks feature the ability to mount either color-coded icon tabs for service identification or dust covers to protect unused jacks from dust and other contaminants. Jacks are available in nine colors and are supplied with two color-matched icon tabs and dust covers for voice or data identification.

Guaranteed to meet or exceed TIA-568-C.2 component performance Supports TIA-568-C.2 category 6 100-meter channel performance Multi-purpose keystone design - equally suitable as a work area outlet and a patch panel port 180° high density - compatible with all Signamax keystone faceplates, surface mount boxes, and snap-in patch panels Terminated with standard single-position 110 or Signamax four-pair termination tools Rated for at least 750 plug insertions providing for the highest level of system reliability Rear 110 type contacts provide improved wire retention and ease of termination Contact design provides enhanced plug-to-jack connection integrity and protects against damage caused by insertion of 4- or 6-position plugs T568A and T568B wiring with an easy-to-read color-code wiring label for maximum flexibility Have an ability to mount either color-coded icon tabs for service identification or dust covers to protect unused jacks form dust and other ontaminants

Category 5e UTP keystone feed-thru couplers can be used as a second piece of connecting hardware when a cross-connection is needed for active equipment connection to the cabling, and as a consolidation point in the open office environment. Feed-thru cou-plers meet component, permanent link and channel requirements as defined in TIA/EIA-568-C.2 and provide a sound platform for supporting today's network technologies. These high-density feed-thru couplers are compatible with Signamax 24- and 48-port high density snap-in patch panels providing flexibility in field installation. They are also compatible with all Signamax faceplates and sur-face mount multimedia boxes.

Applications:
- cross-connections
- horizontal cabling consolidation points
- horizontal cabling connection point in building automation cabling
Contact design provides enhanced plug-to-jack connection integrity and protects against damage caused by insertion of 4- or 6-position plugs Rated for at least 750 plug insertions
Compatible with T568A and T568B cabling

Category 5e Screened Jacks are designed for the same high level of performance standards as our unscreened jacks. This slim in pro-file jack is designed for the highest density applications, and is engineered to exceed all ANSI/TIA-568-C.2 category 5e requirements. Jacks are fully shielded to optimize protection from EMI. Category 5e jacks can be terminated with industry standard 110 single-position tools and feature color-coding for both T568A and T568B wiring schemes.

Multi-purpose high-density keystone design Fully shielded design provides effective protection from EMI Contact design provides enhanced plug-to-jack connection integrity and protects against damage caused by insertion of 4- or 6-position plugs Rear 110-type contacts provide improved wire retention and ease of termination Rated for at least 750 plug insertions T568A and T568B wiring with an easy-to-read color-code wiring label Termination with standard single-position 110 termination tool

Signamax category 5e screened toolless keystone jack is designed to exceed TIA-568-C.2 performance specifications. Screened key-stone jacks with an overall overlap solid shielding design are capable to guarantee 100-meter four-connector channel performance in environments with elevated EMI levels. Category 5e screened toolless keystone jack is compatible with Signamax keystone faceplates (1-, 2-, and 4-port) and snap-in patch panels (24-port 1-RMS and 48-port 2-RMS) providing flexibility in field installation and easy connection to the telecommunications bonding and grounding system.

Guaranteed to meet or exceed TIA-568-C.2 component performance Supports TIA-568-C.2 category 5e 100-meter channel performance Multi-purpose keystone design - equally suitable as a work area outlet and a patch panel port High density - compatible with all Signamax keystone faceplates, surface mount boxes, and snap-in screened and unscreened patch panels Overall solid screening design Toolless - does not require standard or any other termination tools T568A and T568B wiring with an easy-to-read color-code wiring label for maximum flexibility 110-type contacts provide improved wire retention and ease of termination Contact design provides enhanced plug-to-jack connection integrity and protects against damage caused by insertion of 4- or 6-position plugs Rated for at least 750 plug insertions providing for the highest level of system reliability

Category 5e High-Density Keystone Jacks exceed component, permanent link and channel transmission requirements as defined in ANSI/TIA-568-C.2 providing a sound platform for supporting network operating systems including Gigabit Ethernet. The high-density jack is slim profile and ideal for use with our high-density field-configurable patch panels. Category 5e jacks can be terminated with industry standard 110 single-position tools and feature color-coding for both T568A and T568B wiring schemes. Jacks feature the ability to mount either color-coded icon tabs for service identification or dust covers to pro-tect unused jacks from dust and other contaminants. Jacks are available in nine colors and are supplied with color-matched icon tabs and dust covers for voice or data identification.

Multi-purpose high-density keystone design Contact design provides enhanced plug-to-jack connection integrity and protects against damage caused by insertion of 4- or 6-position plugs Rear 110-type contacts provide improved wire retention and ease of termination Rated for at least 750 plug insertions T568A and T568B wiring with an easy-to-read color-code wiring label Termination with standard single-position 110 termination tool Ability to mount either color-coded icon tabs for service identification or dust covers Supplied with three color-matched icon tabs and dust covers Transparent protection cap protects conductor termination points and controls cable entry Available in nine colors

Category 5e unscreened high-density keystone jacks have been designed to meet the need for today's high-bandwidth applications. Category 5e connectors are slim in profile for the highest density applications, and are engineered to exceed all ANSI/TIA-568-C.2 category 5e requirements. Special design features allow jack to be terminated with a standard 110 single-position tool or with the Signamax four-pair tool.

Guaranteed to meet or exceed TIA-568-C.2 component performance Supports TIA-568-C.2 category 5e 100-meter channel performance Multi-purpose keystone design - equally suitable as a work area outlet and a patch panel port 180° high density - compatible with all Signamax keystone faceplates, surface mount boxes, and snap-in patch panels Terminated with standard single-position 110 or Signamax four-pair termination tools Rated for at least 750 plug insertions providing for the highest level of system reliability Contact design provides enhanced plug-to-jack connection integrity and protects against damage caused by insertion of 4- or 6-position plugs Rear 110 type contacts provide improved wire retention and ease of termination T568A and T568B wiring with an easy-to-read color-code wiring label for maximum flexibility Have an ability to mount either color-coded icon tabs for service identification or dust covers to protect unused jacks form dust and other contaminants

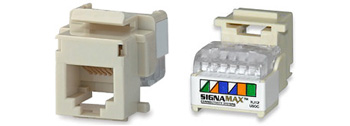

Voice-grade unscreened high-density MT-Series keystone jacks have been designed to support performance of voice-transmission network applications such as telephony, and low-speed data-transmission applications using standard USOC wiring scheme. Special design features allow jack to be terminated with a standard 110 single-position tool or with the Signamax four-pair tool.

Multi-purpose keystone design - equally suitable as a work area outlet and a patch panel port 180° high density - compatible with all Signamax keystone faceplates, surface mount boxes, and snap-in patch panels Terminated with standard single-position 110 or Signamax four-pair termination tools Three-pair USOC wiring with an easy-to-read color-code wiring label for maximum flexibility Rated for at least 750 plug insertions providing for the highest level of system reliability Rear 110 type contacts provide improved wire retention and ease of termination Contact design provides enhanced plug-to-jack connection integrity Have an ability to mount either color-coded icon tabs for service identification or dust covers to protect unused jacks form dust and other contaminants

Voice-Grade 6-wire jacks utilize IDC termination, accept 22-24 AWG solid wire, and provide maximum flexibility in designing voice and low-speed data distribution systems. Termination can be done using 110 punch down tools, or by using the termination cap for fast and easy termination. The KJJ series jack can either be end- or mid-span terminated, to suit the application.

T568A and T568B wiring with an easy-to-read color-code wiring label Termination with standard single-position 110 termination tool Protection cap provides fast and easy termination and protects conductor termination points Contact design provides enhanced plug-to-jack connection integrity Rated for at least 750 plug insertions Rear 110-type contacts, end- or mid-span terminated to suit the application, provide improved wire retention and ease of termina-tion Ability to mount either color-coded icon tabs for service identification or dust covers

Designation icons and dust covers can be specified, for providing both port protection and color-coding. Icons and dust covers are sold in packages of 50.

The universal wiring fixture is compatible with both Category 5e, 6 and 6A connectors. It helps to facilitate wire orientation and termination on-site.

Signamax industrial grade jacks provide the same high-level transmission performance as other Signamax twisted-pair connectors in-tended for regular commercial applications, but with a robustness capable to withstand harsh environments typical to factory floors, chemical, food processing plants, etc. Unique IP67-rated jack housing design guarantees superb protection against liquid and solid agents' penetration, against vibrations, and for a long-life reliable performance. Jacks are furnished with dust caps to prevent expo-sure of unmated connectors and are available in an unscreened (UTP) and screened (FTP) versions.

Unique IP67-rated jack housing design Furnished with dust caps Available in an unscreened (UTP) and screened (FTP) versions Applications - factory floors, chemical, food processing plants T568A and T568B wiring with an easy-to-read color-code wiring label Termination with standard single-position 110 termination tool Rear 110-type contacts provide improved wire retention and ease of termination Contact design provides enhanced plug-to-jack connection integrity and protects against damage caused by insertion of 4 or 6 po-sition plugs Rated for at least 750 plug insertions

Signamax industrial grade jacks provide the same high-level transmission performance as other Signamax twisted-pair connectors in-tended for regular commercial applications, but with a robustness capable to withstand harsh environments typical to factory floors, chemical, food processing plants, etc. Unique IP67-rated jack housing design guarantees superb protection against liquid and solid agents' penetration, against vibrations, and for a long-life reliable performance. Jacks are furnished with dust caps to prevent expo-sure of unmated connectors and are available in an unscreened (UTP) and screened (FTP) versions.

Unique IP67-rated jack housing design Furnished with dust caps Available in an unscreened (UTP) and screened (FTP) versions Applications - factory floors, chemical, food processing plants T568A and T568B wiring with an easy-to-read color-code wiring label Termination with standard single-position 110 termination tool Rear 110-type contacts provide improved wire retention and ease of termination Contact design provides enhanced plug-to-jack connection integrity and protects against damage caused by insertion of 4 or 6 po-sition plugs Rated for at least 750 plug insertions

Signamax Keystone Industrial DIN-Rail Mounting Modules afford an opportunity to combine advantages of regular keystone jack de-sign and transmission performance with simplicity and usability of industrial DIN-rail mounting systems. State-of-the-art module's design provides all kinds of features usually found in office work area solutions, - universal labeling, pro-tection covers, "front access," "gravity compensation" for patch cords along with such important for the industrial applications aspects as toolless mounting and replacement of connector modules, quick access to any part of the assembly. Additionally, modules allow installing screened jacks without any extra efforts, parts, and tools.

Designed for standard 35-mm wide DIN rails Side lids are removable facilitating installation of several modules in one continuous row Accommodates all Signamax keystone jacks up to 17 mm (0.67 in) wide Metal spring serves two purposes - secure retention of all keystone jack types, and grounding contact and path for screened jacks Clear plastic labeling window Front hinged hatch protects keystone jack from damage and contamination when it is not used Swinging cassette with latching mechanism allows quick and easy installation and removal of the keystone jack Installation does not require special tools or threaded fastening - the module snaps-on the DIN rail Cable entry points are equipped with noses supporting required cable bend radii and protecting cables from deformation Equipment or patch cord connection angle provides for cord stress compensation caused by the cord's weight

3-Way Binding Post Modules provide termination options for banana plugs, speaker tips, spade tips or bare wire. Binding post mod-ules are available with red or black color code.

Blank Modules cover up unused port openings on all Signamax keystone faceplates and surface mount boxes. Blank Modules are sold in packages of 10.

Protect keystone connector mounting openings Create aesthetic appearance for partially populated connecting hardware Compatible with all keystone standard openings Available in four colors

BNC Modules are compatible with all Signamax keystone faceplates and surface-mount boxes. The BNC modules provide one feed-thru connection.

F-type 75-Ohm radio-frequency connectors are used for connecting Series 59, Series 6, and Series 11 coaxial cable to video, CATV, and security cameras. The most widely used connector for residential cable service. F-type connectors do not have center pins. In-stead, they use the solid center conductor of the cable as a center pin. For this reason, F-type connectors cannot be used with cables that have a stranded center conductor. Usage of the cable center conductor instead of a pin makes F-type comparatively inexpensive. F-Type feed-thru modules are compatible with all Signamax keystone panels, faceplates and surface-mount boxes. Connectors are 75 Ohm and rated for 1- or 3-GHz performance.

1 and 3 GHz versions available 75 Ohm Bronze shell and terminal 3/8-32 thread Compatible with all Signamax keystone panels, faceplates and surface-mount boxes Easy connection in the field

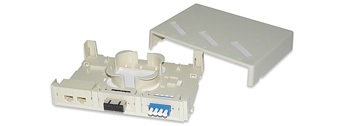

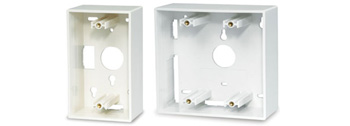

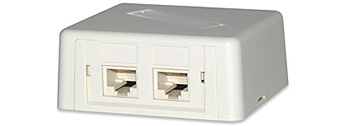

Surface mount multimedia boxes are available in a 1-, 2-, 4- and 6-port versions and support all Signamax standard and multimedia keystone jacks. The 6-port surface mount multimedia box provides the ability to mix and match up 6 copper, fiber or other media types in one location.

1-, 2-, 4- and 6-port versions Support all Signamax standard and multimedia keystone jacks

Optical Fiber Modules bring ST. SC, LC and MT-RJ fiber connectors to the workstation. Fiber couplers are provided with phosphor bronze sleeves suitable for both multimode and singlemode applications.

Guaranteed to meet or exceed TIA-568-C.3 performance requirements Multi-purpose keystone design Adapters are equipped with phosphor bronze sleeves

Modules are available with RCA feed-thru (female-to-female) connectors. RCA modules are offered in five colors to indicate connection type.

The RCA-to-110 modules enable transmission of audio/video signals over category 5e or 6 UTP cabling and feature 110-type IDC terminations on rear for quick, easy installation. RCA modules are offered in five colors to indicate connection type.

The SVHS-to-110 modules enables connection to your video systems using category 5e or 6 cabling and feature 110-type IDC termi-nations on rear for quick, easy installation. These modules provide a cost-effective alternative to running S-Video cabling.

Angled faceplate is available in an 8-port version. This plate allows an angled patch cord exit to prevent damage and help maintain the bend radius of patch cords. Faceplate features top and bottom designation labeling windows for convenient faceplate identifica-tion. Faceplate is supplied with label cards and clear labeling window covers.

Angled design 8-port version Top and bottom designation labeling windows

Drywall brackets provide a quick and secure installation of double-gang faceplates. This not only speeds installation time, but makes moves & adds much easier to accomplish. The 22 gauge material thickness is reinforced at the mounting-tab, to remain in proper position, throughout the life of the installation. Device plate mounting holes are pre-tapped for plate fastening.

Double-gang faceplates are available in 6-, 8- and 12-port versions and allow for mounting any combination of keystone jacks and multimedia modules.

Double-gang faceplates are available in 6- and 12-port versions and allow for mounting any combination of keystone jacks and mul-timedia modules. These faceplates feature top and bottom designation labeling windows for convenient faceplate identification. Plates are supplied with label cards and clear labeling window covers.

Double-gang format, 6- and 12-port versions, Top and bottom designation labeling windows

Double gang faceplates are available in 8- and 12-Port versions and allow for mounting any combination of keystone jacks and multimedia modules. These faceplates feature a top and bottom designation labeling window for convenient faceplate identification. Plates are supplied with mounting screws, label cards and clear covers.

Double-gang brushed stainless steel faceplates are available in 8- and 12-port versions and allow for flush mounting of jacks and for a clean appearance. Stainless steel faceplates are ideal for use in environments that require greater durability and a sanitary, easy-to-clean solution.

Double-gang design Brushed stainless steel Flush mounting of jacks 8- and 12-port versions Ideal for environments requiring durability and a sanitary, easy-to-clean solution

Stainless steel and plastic wall mount phone plate provides a clean, easy-to-install method for mounting any wall mountable phone. Plates are standard sized and with durable mounting posts.

Stainless steel or plastic Durable mounting posts

Angled faceplates are available in 2- and 4-port versions. These plates allow an angled patch cord exit to prevent damage and help maintain the bend radius of patch cords. Faceplates feature designation labeling windows for faceplate identification.

Angled - prevent damage and help maintain the bend radius of patch cords Designation labeling windows 2- and 4-port versions

Angled faceplates are available in 2- and 4-port versions. These plates allow an angled patch cord exit to prevent damage and help maintain the bend radius of patch cords. Faceplates feature designation labeling windows for faceplate identification.

Faceplates are available in 1-, 2-, 3-, 4- or 6-port versions and allow for mounting any combination of keystone jacks and multimedia modules. These faceplates feature top and bottom designation labeling windows for convenient faceplate identification.

Top and bottom designation labeling windows 1-, 2-, 3-, 4- or 6-port versions

Single-gang oversized faceplates are available in 1-, 2-, 3-, 4- or 6-port versions and allow for mounting any combination of keystone jacks and multimedia modules. Oversized faceplates are 4.875" x 3.125" x .375", provide a designer look and hide irregular drywall cuts and flaws around outlets.

Oversized - 4.875" x 3.125" x .375" Hide irregular drywall cuts and flaws around outlets 1-, 2-, 3-, 4- or 6-port versions

Single-gang brushed stainless steel faceplates allow mounting any combination of keystone jacks and multimedia modules. These faceplates allow for flush mounting of jacks and for a clean appearance. Stainless steel faceplates are ideal for use in environments that require greater durability and a sanitary, easy-to-clean solution.

Brushed stainless steel Flush mounting of jacks 1-, 2-, 3-, 4- or 6-port versions Ideal for environments requiring durability and a sanitary, easy-to-clean solution

The 106-Type Faceplates with 2- and 4-port adapters are compatible with all Signamax keystone jacks and multimedia modules. The 106-type plates and adapters are ideal to coordinate electrical wiring devices with telecommunications outlets.

Decora-Style Faceplates and Adapters are compatible with all Signamax keystone jacks and multimedia modules, Faceplates are available in single- and double-gang versions. Adapters are available in a variety of port sizes and are ideal for combining data, voice, audio and video in one outlet location.

Compatible with all Signamax keystone jacks Single- and double-gang versions Ideal for combining data, voice, audio and video in one outlet

Surface mount faceplate boxes are available to accommodate both single-gang and double-gang faceplates. Boxes provide knockouts on all sides for easy cable entry and are supplied with mounting hardware.

Modular furniture adapters accept all Signamax jacks and multimedia modules and are available in 3- and 4-port versions. Adapters fit into standard modular furniture openings.

Up to four keystone modules Fit into standard-size modular furniture opening

Surface mount multimedia boxes are available in a 1-, 2-, 4- and 6-port versions and support all Signamax standard and multimedia keystone jacks. The 6-port surface mount multimedia box provides the ability to mix and match up 6 copper, fiber or other media types in one location.

1-, 2-, 4- and 6-port versions Support all Signamax standard and multimedia keystone jacks

The 3-port surface mount multimedia box provides protection of patch cord connection points, which gives the installation an additional flexibility at such locations as open office environments, warehouses, lobbies/hallways, etc.

Protection of patch cord connection points 3-port version Support all Signamax standard and multimedia keystone jacks Applications - open office environments, warehouses, lobbies/hallways, etc.

Single-gang industrial faceplates are available in a 1- or 2-port version and accept both category 6 and category 5e Industrial Jacks. Faceplates are supplied with a rear sealing gasket and mounting screws. Faceplates are IP44 rated.

Single-gang design 1- and 2-port versions Compatible with all Signamax Industrial Jacks Stainless steel IP44-rated when used with Signamax Industrial Grade Jacks

Harsh Environment/Industrial Surface Mount Boxes are available in 1-, 2-, 3-, and 4- port versions and will accept both category 6 and category 5e Industrial Jacks. These boxes are designed to mount on any surface and provide IP66/IP67 rating. Boxes are sup-plied with cable entry compression fittings and mounting screws.

1-, 2-, 3-, and 4-port versions Compatible with all Signamax Industrial Grade Jacks Designed to mount on any surface IP66/IP67-rated when used with Signamax Industrial Grade Jacks Supplied with cable entry compression fittings

Angled outlets are designed for creating work area connections based on popular European outlet mounting format (85 x 85 mm). The two-piece design hides slots and screw heads under a decorative faceplate allowing a clean, elegant solution suitable for any ap-plication. Clear plastic label covers provide an easy-to-read labeling solution. Integrated hinged shutters protect jacks from dust and other solid agents' penetration in unmated state. Angled jack mounting helps to eliminate protrusion and compensate the weight of connected equipment cord preventing its damage due to tension and excessive bend radius. Snap-on decorative faceplate does not require tools for replacement and can be installed after all office fit-out works are finished. Outlets are compatible with all Signamax UTP and fiber keystone jacks.

British standard mounting format (85 x 85 mm) Two-piece design Angled jack mounting Snap-on decorative faceplate Clear plastic label covers Integrated spring shutters Compatible with all Signamax keystone jacks

International outlets are designed for creating work area connections based on popular European outlet mounting format (mounting box/faceplate size - 85 x 85 mm). The two-piece design hides slots and screw heads under a decorative faceplate allowing a clean, elegant solution suitable for any application. Clear plastic label covers provide an easy-to-read labeling solution. Integrated spring shutters protect jacks from dust and other solid agents' penetration in unmated state. Snap-on decorative faceplate does not require tools for replacement and can be installed after all office fit-out works are finished. Outlets are compatible with all Signamax UTP and fiber keystone jacks.

British standard mounting format (85 x 85 mm) Two-piece design Snap-on decorative faceplate Clear plastic label covers Integrated spring shutters Compatible with all Signamax keystone jacks

3-Way Binding Post modules provide one red and one black binding post connector for speaker terminations. Modules feature a front-loading snap-in design, allowing quick and easy outlet configuration and field changes.

Blank Modules fill unused space in the faceplate opening and provide for future expansion. All modules feature a front-loading snap-in design, which allows changes or additions in outlet configuration to be made easily.

BNC connector modules provide one or two BNC feed-thru connectors. Modules feature a front-loading snap-in design, allowing quick and easy outlet configuration and field changes.

Category 5e Connector Modules are available in a single- and dual-port configuration. Connector modules feature a front-loading snap-in design, allowing quick and easy outlet configuration and field changes. Modules are compatible with T568A/B wiring schemes using an easy-to-read color-coded wiring label.

Exceed TIA/EIA-568-C.2 performance specifications Enhanced plug-to-jack connection integrity Rear 110 type contacts provide improved wire retention Easy-to-read T568A and T568B color-code wiring label Protection against damage caused by insertion of 4- or 6-position plugs Rated for at least 750 plug insertions Termination with standard single-position 110 termination tool Recessed area above the jack to ensure alignment of labels Preprinted icon labels are available Compatible with Pass & Seymour and Wiremold trimplates and raceway device brackets

Category 6 Connector Modules are available in a single- and dual-port configuration. Connector modules feature a front-loading snap-in design, allowing quick and easy outlet configuration and field changes. Modules are compatible with T568A/B wiring schemes using an easy-to-read color-coded wiring label.

Exceed TIA/EIA-568-C.2 performance specifications Enhanced plug-to-jack connection integrity Rear 110 type contacts provide improved wire retention Easy-to-read T568A and T568B color-code wiring label Protection against damage caused by insertion of 4- or 6-position plugs Rated for at least 750 plug insertions Termination with standard single-position 110 termination tool Recessed area above the jack to ensure alignment of labels Preprinted icon labels are available Compatible with Pass & Seymour and Wiremold trimplates and raceway device brackets

F-Type modules provide one or two F-type feed-thru connectors. F-type 75-Ohm radio-frequency connectors are used for connecting Series 59, Series 6, and Series 11 coaxial cable to video, CATV, and security cameras. The most widely used connector for residential cable service. F-type connectors do not have center pins. Instead, they use the solid center conductor of the cable as a center pin. For this reason, F-type connectors cannot be used with cables that have a stranded center conductor. Usage of the cable center conductor in-stead of a pin makes F-type comparatively inexpensive. Connectors are 75 Ohm and are rated for 3-GHz performance. Modules feature a front-loading snap-in design, allowing quick and easy outlet configuration and field changes. F-Type feed-thru modules are compatible with all Signamax keystone panels, faceplates and surface-mount boxes.

3-GHz transmission performance 75 Ohm Bronze shell and terminal 3/8-32 thread Compatible with all Signamax keystone panels, faceplates and surface-mount boxes Easy connection in the field

ST Fiber Modules provide two ST feed-thru couplers in both straight (180°) and angled (45°) cable exit designs. ST couplers are pro-vided with phosphor bronze sleeve or ceramic sleeve for singlemode applications.

Keystone jack connector modules are available in both single- and dual-port versions. Modules accommodate category 6A, 6, 5e and Voice-Grade Jacks.

The One-Module Surface Mount Multimedia Box is a convenient way to mount connector modules in the work area, for any cable type. This single-module box consolidates cabling from behind the wall, on the wall or from surface raceways. This box is ideal for mixing cable types, and offers knockouts in the cover that permit a smooth transition to industry standard raceways.

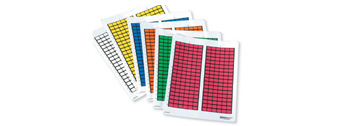

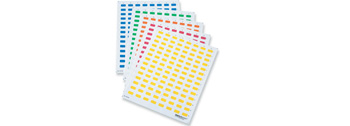

Each connector module port and faceplate can be easily identified using custom printable label sheets. Label printing is made easy by using the downloadable template. Connector module features a recessed area above each port to accommodate a clean, quick label-ing. Labels are supplied on an 8.5" x 11" sheet suitable for printing using most general purpose office printers.

RCA modules provide one, two, or three connectors in either feed-thru coupler or solder-tail types. Modules feature a front-loading snap-in design, allowing quick and easy outlet configuration and field changes. Available in a variety of configurations (one to three connectors, straight/angled, feed-through/solder tail) Signamax RCA Connector Modules help to create dynamic multimedia work area environment capable to support most popular audio/video applications.

Standard industry 75-Ohm D-bulkhead RCA connectors Available in one-, two, and 3-connector versions Connectors are clearly marked with standard circuit designation connector colors - white, red, yellow Available in straight (180-degree) and angled (45-degree) designs Available in feed-through and solder-tail connector designs Front-loading snap-in design, allowing quick and easy configuration and field changes

Single- and Double-Gang Faceplates provide a mounting method for a broad range of connector modules. Faceplates feature front-loading of connector modules with a snap-in process allowing additions or outlet configuration changes to be made quickly. Face-plates have both top and bottom labeling windows for station identification and are supplied with white cards and clear label covers. For installations which require an aesthetically pleasing look color-coded inserts are provided to replace labels and hide the mounting screws. The single-gang faceplate can accommodate up to three connector modules for a total of 6 connections. The double-gang plate provides double the capacity for 12 connections in a single location.

Surface mount faceplate boxes are available to accommodate both single-gang and double-gang faceplates. Boxes provide knockouts on all sides for easy cable entry and are supplied with mounting hardware.

The three-module surface mount multimedia box features an integral cable management spool, for storing cable lack lengths. Port identification can be accomplished with the use of three labeling windows located on the box cover. These surface mount boxes are compatible with all copper, fiber and multimedia connector modules with 180° cable exit.

SVGA HD-15 module provides either a female-to-female HD-15-pin connector or a HD-15 female to terminal block interface optimized for use in any AV application where VGA controls are used. Modules feature a front-loading snap-in design, allowing quick and easy outlet configuration and field changes. The HD15 female to terminal block termination system features an all new design. Manufactured with genuine Phoenix Contact termi-nal blocks for a truly reliable connection, these larger blocks make it easier to terminate while still keeping the connector compact. SCM SVGA modules dramatically reduce installation time and cost by eliminating the need for soldering or crimping. When used in outlet box-mount applications these low-profile connectors are less than 1 inch behind a faceplate.

Designed for use with VGA-UXGA signals Requires no soldering or crimping Includes hex standoffs Dramatically reduces installation time and costs

Voice-Grade modules are available with 6P/6C ("RJ-12"-type) connectors. Modules are compatible with USOC wiring in both single- and dual-port configurations.Preprinted icon labels and customer printable labels are available to quickly identify different services. Modules have a recessed area above the jack to ensure alignment of labels. With the front-loading snap-in feature, outlet configura-tion and field changes are made easy. All Signamax connector modules are compatible with Pass & Seymour and Wiremold trimplates and raceway device brackets.

6P6C (six-wire "RJ-12"-type) USOC wiring configuration Rear 110 type contacts provide improved wire retention Termination with standard single-position 110 or multipair termination tools Compatible with Pass & Seymour and Wiremold trimplates and raceway device brackets Enhanced plug-to-jack connection integrity Protection against damage caused by insertion of 4- or 6-position plugs Preprinted icon labels Rated for at least 750 plug insertions Recessed area above the jack to ensure alignment of labels

Signamax single-position termination tool is a versatile impact tool designed to terminate and cut twisted-pair cable conductors. Sig-namax multi-pair termination tool is a versatile impact tool designed to terminate and cut twisted-pair cable conductors and seat connecting blocks. The tools feature an ergonomically designed handle to provide a no-slip grip. Our single-position impact tool is available to terminate all Signamax key-stone jacks, 66 or 110 blocks and is spring-loaded and tension-adjustable. Replacement blades are available.

Signamax 4-pair termination tool is designed to work with the following Signamax MT-series keystone jacks:
KJ458MT-CA6C-xx (xx: WH, BK, BU, GN, GY, OR, RD, YE)
KJ458MT-C6C-xx (xx: WH, BK, BU, GN, GY, OR, RD, YE)
KJ458MT-C5E-xx (xx: WH, BK, BU, GN, GY, OR, RD, YE)
KJ126MT-C3U-xx (xx: WH, BK, BU, GN, GY, OR, RD, YE)
Simultaneous termination of all eight twisted-pair cable conductors along with trimming of conductor excess allows to save installa-tion time, provides reliable termination means in confined areas, while ensuring precise and consistent termination of all pairs due to the calibrated die drive mechanism.

Simultaneous termination of eight twisted-pair conductors along with conductor excess trimming Comfortable plastic handle grips Lightweight and compact, fits most tool pouches' compartments Replaceable die Tool and die are bright-colored - easy to find when left behind When not used, the tool may be stowed by using the integrated lock

Category 6 High-Density Feed-Thru Panels can be used when connecting equipment in a telecommunications room and is necessary to cross-connect using patch cables, in order to interface to the distribution cabling system. Signamax High-Density 48-Port Feed-Thru Patch Panels provides 48-modular coupling ports in a 1 RMS (1.75"H), while maintaining category 6 performance. Panels are ideal where rack space is limited and are provided with a newly designed cable management bar that easily mounts to the back of the panel without the need for mounting screws. This cable management bar features improved cable routing and strain relief.

Category 6A Screened Patch Panels are designed to meet 10 Gigabit Ethernet IEEE 802.3an rev. 1.0 transmission requirements and are guaranteed to exceed ANSI/TIA-568-C.2 performance specifications. These high-density panels are available in 24- and 48-port versions featuring port labeling areas and port numbering for easy circuit identification. Panels are supplied with 10G screened connectors supporting both T568A and T568B wiring using an easy-to-read color-code wiring label. This uniquely designed connector features a tool-less termination method for quick and easy installation. A new contact design provides enhanced plug-to-jack connection integrity and is rated for a minimum of 750 plug insertions providing for the highest level of system reliability. Jacks are fully shielded to optimize protection from EMI including alien crosstalk. Panels are provided with a newly designed cable management bar that easily mounts to the back of the panel without the need for mounting screws. This cable management bar features improved cable routing and strain relief.

Connector transmission performance meets or exceeds TIA-568-B.2-10 channel level performance specifications. Termination is made quick and easy using a tool-less termination. Rear cable management bar. Connector contact design provides enhanced plug to jack connection integrity and protects against damage caused by insertion of 4 or 6 position plugs. Connectors are rated for at least 750 plug insertions providing for the highest level of system reliability. Maximum strength and durability construction.

ategory 6A 10G Angled Patch Panels are designed to the same high level performance as our standard category 6A panel panels. Angled panels are supplied preloaded with black category 6A jacks or can be ordered unloaded for field configuration. These panels have the added feature of an angled design to help route patch cords to vertical rack or cabinet mounted cable management. This feature eliminates the need for horizontal cable management panels, which provides additional rack space in high density applica-tions.

Connector transmission performance meets or exceeds TIA-568-B.2-10 performance specifications Connector contact design provides enhanced plug to jack connection integrity and protects against damage caused by insertion of 4 or 6 position plugs Angled design eliminates the need for cable management panels providing additional rack space Rear termination is made quick and easy using a 110 type connector compatible with an industry standard single position 110 or Krone termination tool Connectors are rated for at least 750 plug insertions providing for the highest level of system reliability Maximum strength and durability construction

Category 6A Patch Panels are designed to meet 10 Gigabit Ethernet IEEE 802.3an rev. 1.0 transmission requirements and are guar-anteed to exceed ANSI/TIA-568-C.2 performance specifications. These high-density panels are available in 24- and 48-port versions featuring a rolled edge steel construction, which provides maximum strength and durability and eliminates panel flex during termina-tion. Panels feature port labeling areas and port numbering for easy circuit identification. Panels are supplied preloaded with 10G connectors supporting both T568A and T568B wiring using an easy-to-read color-code wiring label and can be terminated using standard single-position 110 termination tool. This new connector design provides enhanced plug-to-jack connection integrity, protects against damage caused by insertion of 4- or 6-position plugs and is rated for a minimum of 750 plug insertions providing for the highest level of system reliability. Jacks feature the ability to mount either color-coded icons for service identification or dust covers to protect unused jacks from dust and other contaminants. Rear 110 contacts provide improved conductor retention and ease of termination. Jacks are supplied with a metallized plastic cable protection cap, which eliminates alien crosstalk for maximum performance. Panels are provided with a newly designed cable management bar(s) that easily mounts to the back of the panel without the need for mounting screws. This cable management bar features improved cable routing and strain relief.

Connector transmission performance meets or exceeds TIA-568-B.2-10 channel level performance specifications. Connector contact design provides enhanced plug to jack connection integrity and protects against damage caused by insertion of 4 or 6 position plugs. Rear cable management bar. Rear termination is made quick and easy using a 110-type connector compatible with an industry standard single position 110 or Krone termination tool. Connectors are rated for at least 750 plug insertions providing for the highest level of system reliability. Maximum strength and durability construction.

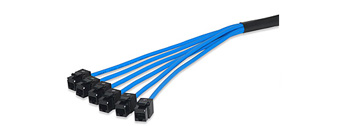

Category 6A Pre-terminated Trunk Assemblies help to reduce significantly both time and cost of a cabling installa-tion. Terminated and tested in a controlled manufacturing environment, cut to the customer pre-ordered lengths, and ready to install in a patch panel, trunk assemblies eliminate all these operations in the field making your job easy and efficient. Trunk cable assemblies can be provided in an unscreened (U/UTP) and screened (F/UTP) ver-sions in a jack-to-jack or jack-to-blunt cut configurations to support the widest range of applications. Cables can be used with any field-configurable patch panel (screened assemblies are not compatible with 48U-HDMMP-1R pan-els only).

Ready-to-use product - cable bundles are ready for installation and require no additional termina-tion operations except the one-ended designs Solid cable and keystone jacks used in the assembly meet and exceed category 6A specifications Pre-tested at the factory per ANSI/TIA-568-C.1 requirements All cable legs are labeled at both ends for easy identification and aligning in the field Each cable bundle is enclosed in a CMR- or CMP-rated mesh sleeve that retains the bundle and pro-tects it during installation Mesh sleeve is fixed by heat-shrink tubing that can be used as an anchor point when cable pulling is needed Compatible with all Signamax field-configurable patch panels (screened cables are not compatible with 48U-HDMMP-1R only)

Category 6A Screened Patch Panels are designed to meet 10 Gigabit Ethernet IEEE 802.3an rev. 1.0 transmission requirements and are guaranteed to exceed ANSI/TIA-568-C.2 performance specifications. These high-density panels are available in 24- and 48-port versions featuring port labeling areas and port numbering for easy circuit identification. Panels are supplied with 10G screened connectors supporting both T568A and T568B wiring using an easy-to-read color-code wiring label. This uniquely designed connector features a tool-less termination method for quick and easy installation. A new contact design provides enhanced plug-to-jack connection integrity and is rated for a minimum of 750 plug insertions providing for the highest level of system reliability. Jacks are fully shielded to optimize protection from EMI including alien crosstalk. Panels are provided with a newly designed cable management bar that easily mounts to the back of the panel without the need for mounting screws. This cable management bar features improved cable routing and strain relief.

Connector transmission performance meets or exceeds TIA-568-B.2-10 channel level performance specifications. Termination is made quick and easy using a tool-less termination. Rear cable management bar. Connector contact design provides enhanced plug to jack connection integrity and protects against damage caused by insertion of 4 or 6 position plugs. Connectors are rated for at least 750 plug insertions providing for the highest level of system reliability. Maximum strength and durability construction.

Category 6 high-density unloaded panel is available for field configuration. This panel supports 48 connectors in a 1 RMS (1.75"H) panel and is ideal where rack space is limited. Panel accepts category 6 unscreened jacks and is supplied with a cable management bar. This panel provides the ability to populate only the number of ports that are needed and can be configured with UTP connectors of different colors, which provide additional color-coding capabilities.

The Category 6 Screened Patch Panel is available in a 24-port version and provides the ability to terminate fully screened category 6 cable. This panel exceeds ANSI/TIA-568-C.2 specifications for superior performance. The panel features front labeling areas and comes with a rear cable management bar that mounts easily to the back of the panel.

Category 6 Angled Patch Panels are designed to the same high level performance as our standard category 6 panels. Angled panels are supplied preloaded with black category 6 jacks or can be ordered unloaded for field configuration. These panels have the added feature of an angled design to help route patch cords to vertical rack or cabinet mounted cable management. This feature eliminates the need for horizontal cable management panels, which provides additional rack space in high density applications.

Transmission performance exceeds TIA/EIA-568-C.2 component, permanent link and channel level performance specifications Contact design provides enhanced plug-to-jack connection integrity and protects against damage caused by insertion of 4- or 6-position plugs Connectors are rated for at least 750 plug insertions providing for the highest level of system reliability Rear termination is made quick and easy using a standard single-position 110 termination tool Optional rear cable management bar

The Category 6 High-Density Panel supports 48 category 6 connectors in a 1 RMS (1.75"H) panel. This high-density panel is the ideal solution where rack space is limited. The panel is supplied as a kit which includes the panel, 48 category 6 black jacks and a cable management bar. Panel kits can be supplied with category 6 unscreened jacks of different colors, which provide additional color-coding capabilities.

Category 6 Patch Panels are designed to exceed ANSI/TIA-568-C.2 component, permanent link and channel performance specifica-tions providing usable bandwidth beyond 250 MHz and are backward compatible with lower category cabling systems. These high-density panels are available in 12- through 48-port versions and feature enhanced front and rear labeling features for easy circuit identification. Category 6 panels support both T568A and T568B wiring schemes using an easy-to-read color-coded wiring label. Panels are constructed for maximum strength and durability and feature a fully enclosed, modular design, which provides flexibility and protection of printed circuitry during termination. The RJ-45 contact configuration provides enhanced plug-to-jack connection in-tegrity for superior reliability. Rear termination is made quick and easy using a 4-pair inline 110-type connector compatible with our category 6 multipair impact tool to reduce installation time or an industry standard single-position 110-tool. Panels include an integrated cable management feature for cable routing and strain relief requirements. An optional cable manage-ment bar, which mounts easily to the back of the panel, is available for improved cable routing and strain relief.

Transmission performance exceeds ANSI/TIA-568-C.2 performance specifications Fully enclosed, 6-port modular design, which provides flexibility and protection of printed circuitry during termination Contact design provides enhanced plug to jack connection integrity and protects against damage caused by insertion of 4- or 6-position plugs Integrated cable management feature for cable routing and strain relief requirements Rear termination is made quick and easy using a 4-pair inline 110 type connector compatible with our category 6 multi-pair impact tool to educe installation time or an industry standard single position 110 termination tool An optional cable management bar, which mounts easily to the back of the panel, is available for improved cable routing and strain relief Rated for at least 750 plug insertions providing for the highest level of system reliability Maximum strength and durability construction

Category 6 Pre-terminated Trunk Assemblies help to reduce significantly both time and cost of a category 6 ca-bling installation. Terminated and tested in a controlled manufacturing environment, cut to the customer pre-ordered lengths, and ready to install in a patch panel, trunk assemblies eliminate all these operations in the field making your job easy and efficient. Trunk cable assemblies can be provided in an unscreened (U/UTP) and screened (F/UTP) versions in either in a jack-to-jack, jack-to-plug, or jack-to-blunt cut configurations to support the widest range of applications. Cables can be used with any field-configurable patch panel (screened assemblies are not compatible with 48U-HDMMP-1R panels only).

Ready-to-use product - cable bundles are ready for installation and require no additional termina-tion operations except the one-ended designs Solid cable and keystone jacks used in the assembly meet and exceed category 6 specifications Pre-tested at the factory per ANSI/TIA-568-C.1 requirements All cable legs are labeled at both ends for easy identification and aligning in the field Each cable bundle is enclosed in a CMR- or CMP-rated mesh sleeve that retains the bundle and pro-tects it during installation Mesh sleeve is fixed by heat-shrink tubing that can be used as an anchor point when cable pulling is needed Compatible with all Signamax field-configurable patch panels (screened cables are not compatible with 48U-HDMMP-1R only)

Category 6 Mini Patch Panels are available in 12-port size and are ideal for installations where space is at a premium and open bay racks cannot be used. Panels are provided mounted to either an 89D bracket or in a hinged version, both of which allow for easy ac-cess to the back of the panel for termination to 110 connectors. Panels exceed ANSI/TIA-568-C.2 performance specifications.

Jacks and 110 connectors of Category 6 and 5e rack-mount and mini patch panel can be labeled using color-coded labels. Templates can be downloaded from the Signamax web site, to help installers to lay out label sheets for custom printing. Labels are supplied on 8.5" x 11" sheets suitable for printing using most general-purpose office printers. Sequentially numbered port label strips are also available for numbering ports from 1 to 648.

Category 5e Mini Patch Panels are available in 12-port size and are ideal for installations where space is at a premium and open bay racks cannot be used. Panels are provided mounted to either an 89D bracket or in a hinged version, both of which allow for easy ac-cess to the back of the panel for termination to 110 connectors. Panels exceed ANSI/TIA-568-C.2 performance specifications.

Category 5e Angled Patch Panels are designed to the same high level performance as our standard category 6 panels. Angled panels are supplied preloaded with black category 5e jacks or can be ordered unloaded for field configuration. These panels have the added feature of an angled design to help route patch cords to vertical rack or cabinet mounted cable management. This feature eliminates the need for horizontal cable management panels, which provides additional rack space in high density applications.

Category 5e Patch Panels are designed to exceed ANSI/TIA-568-C.2 component, permanent link and channel performance specifica-tions providing usable bandwidth beyond 155 MHz. These high-density panels are available in 12- through 48-port versions and fea-ture enhanced front and rear labeling features for easy circuit identification. Category 5e panels support both T568A and T568B wir-ing schemes using an easy-to-read color-coded wiring label. Panels are constructed for maximum strength and durability and feature a fully enclosed, modular design, which provides flexibility and protection of printed circuitry during termination. Rear termination is made quick and easy using a 4-pair inline 110-type connec-tor compatible with standard multipair impact tool to reduce installation time or single-position 110 termination tool. Panels include an integrated cable management feature for cable routing and strain relief requirements. An optional cable manage-ment bar, which mounts easily to the back of the panel, is available for improved cable routing and strain relief.

Transmission performance exceeds ANSI/TIA-568-C.2 specifications Integrated cable management feature for cable routing and strain relief requirements Contact design provides enhanced plug-to-jack connection integrity and protects against damage caused by insertion of 4- or 6-position plugs Fully enclosed, 6-port modular design, which provides flexibility and protection of printed circuitry during termination Rear termination is made quick and easy using a 4-pair inline 110 type connector compatible with our multi-pair impact tool to re-duce nstallation time or an industry standard single position 110 termination tool A cable management bar, which mounts easily to the back of the panel, is available for improved cable routing and strain relief Rated for at least 750 plug insertions providing for the highest level of system reliability Maximum strength and durability construction

Pre-terminated Category 5e Trunk Assemblies help to reduce significantly both time and cost of a cabling installation. Terminated and tested in a controlled manufacturing environment, cut to the customer pre-ordered lengths, and ready to install in a patch panel, trunk assemblies eliminate all these operations in the field making your job easy and efficient. Trunk cable assemblies can be provided in an unscreened (U/UTP) and screened (F/UTP) versions in a jack-to-jack, jack-to-plug, or jack-to-blunt cut configurations to support the widest range of applications. Cables can be used with any Signamax field-configurable patch panel (screened trunk cables cannot be used with 48U-HDMMP-1R).

Ready-to-use product - cable bundles are ready for installation and require no additional termination operations except the one-ended designs Solid cable and keystone jacks used in the assembly meet and exceed category 5e specifications Pre-tested at the factory per ANSI/TIA-568-C.1 requirements All cable legs are labeled at both ends for easy identification and aligning in the field Each cable bundle is enclosed in a CMR- or CMP-rated mesh sleeve that retains the bundle and protects it during installation Mesh sleeve is fixed by heat-shrink tubing that can be used as an anchor point when cable pulling is needed Compatible with all Signamax field-configurable patch panels (screened trunk cables cannot be used with 48U-HDMMP-1R)

Category 5e Wall Mount Jack Panels are available in 12- and 24-port sizes with termination points enclosed in a protective housing featuring a removable front cover for easy access to the front-facing RJ-45 and 110 connectors. Panels are provided with standoff legs for routing cables behind the panel and a cable tie-down feature at the panel entry point. The 12-port panels have the same footprint as 100-pair 110-blocks. The jack panels accommodate both T568A and T568B wiring schemes using an easy-to-read color-coded wiring label.

Jacks and 110 connectors of Category 6 and 5e rack-mount and mini patch panel can be labeled using color-coded labels. Templates can be downloaded from the Signamax web site, to help installers to lay out label sheets for custom printing. Labels are supplied on 8.5" x 11" sheets suitable for printing using most general-purpose office printers. Sequentially numbered port label strips are also available for numbering ports from 1 to 648.

Fast Ethernet Modular-Telco Patch Panels provide the ability to connect to 10/100BaseTX switches with Telco-style or RJ-45 interface connectors, while maintaining performance throughout the cabling system. The panels are available in 24- and 48-port sizes with RJ-45 connectors (active pins 1, 2, 3 and 6) wired to 50-position (25-pair) Telco-style connectors using standard pin configuration.

Category 3 Modular-Telco Patch Panels are available in 24- and 48-port sizes and support 2-wire RJ-11, 4-wire RJ-11, 2-wire RJ-45 and 4-wire RJ-45 USOC wiring schemes. Each 50-position Telco connector is provided with both Velcro strain relief brackets and hex sockets to secure 25-pair cables with either 90-degree or 180-degree cable exit. Panel front features a write-on surface to provide port identification. Panels include an integrated cable management/strain relief system for improved cable routing and strain relief.

Gigabit Ethernet Modular-Telco Patch Panels provide the ability to connect to gigabit equipment while maintaining performance throughout the cabling system. The panels are available in 24- and 48-port sizes with RJ-45 8P/8C connectors wired to 50-position (25-pair) Telco-style connectors using T568B wiring.

Category 5e High-Density Feed-Thru Panels can be used when connecting equipment in a telecommunications room ands necessary to cross-connect using patch cables, in order to interface to the distribution cabling system. Signamax High-Density Feed-Thru Patch Panels provide 24- and 48-modular coupling ports, while maintaining category 5e performance. Panels are available in either an un-screened or screened versions and are provided with a newly designed cable management bar that easily mounts to the back of the panel without the need for mounting screws. This cable management bar features improved cable routing and strain relief.

24- and 48-port sizes. Accommodates both unscreened and screened twisted-pair keystone inline couplers. Couplers feature straight-thru wiring scheme compatible with T568A, T568B cabling and any other wiring schemes up to 8 conductors. Coupler contact design provides enhanced plug to jack connection integrity and protects against damage caused by insertion of 4 or 6 position plugs. Applications - cross-connections, horizontal consolidation points, horizontal connection points in building automation cabling, etc. Maximum strength and durability construction. Snap-in rear cable management bar. Couplers are rated for at least 750 plug insertions providing for the highest level of system reliability.

When connecting equipment in a telecommunications room, it is often necessary to cross-connect using patch cables, in order to in-terface to the distribution cabling system. Signamax Category 5e Standard-Density Feed-Thru Patch Panels provide 12-, 16-, 24-, 32- and 48-modular coupling ports, while maintaining category 5e performance.

Category 6 High-Density Feed-Thru Panels can be used when connecting equipment in a telecommunications room ands necessary to cross-connect using patch cables, in order to interface to the distribution cabling system. Signamax High-Density Feed-Thru Patch Panels provide 24- and 48-modular coupling ports, while maintaining category 6 performance. Panels are available in either an un-screened or screened versions and are provided with a newly designed cable management bar that easily mounts to the back of the panel without the need for mounting screws. This cable management bar features improved cable routing and strain relief.

24- and 48-port sizes. Accommodates both unscreened and screened twisted-pair keystone inline couplers. Couplers feature straight-thru wiring scheme compatible with T568A, T568B cabling and any other wiring schemes up to 8 conductors. Coupler contact design provides enhanced plug to jack connection integrity and protects against damage caused by insertion of 4 or 6 position plugs. Applications - cross-connections, horizontal consolidation points, horizontal connection points in building automation cabling, etc. Maximum strength and durability construction. Snap-in rear cable management bar. Couplers are rated for at least 750 plug insertions providing for the highest level of system reliability.

When connecting equipment in a telecommunications room, it is often necessary to cross-connect using patch cables, in order to in-terface to the distribution cabling system. Signamax Category 6 Standard-Density Feed-Thru Patch Panels provide 12-, 16-, 24-, 32- and 48-modular coupling ports, while maintaining category 6 performance.

Signamax BNC-style feed-thru connector patch panels may be used with a number of telecommunications applications - networking, video and audio distribution, VHF equipment, test and measurement, etc. Based on 50- or 75-Ohm BNC feed-thru keystone-type modules, these panels provide high-quality standard-compliant connections to active equipment or cross-connections between cabling segments. Two panel density designs, "standard-density" and "high-density" provide flexibility in managing access and cable entry space. Easy field-configuration of Signamax multimedia panels allows quick replacement of individual modules during reconfigurations and upgrades. Available in 12-, 16-, 24-, 32-, and 48-port sized in standard-density design and in 24- and 48-port sizes in high-density design.

50- and 75-Ohm feed-thru versions Standard-density - 12-, 16-, 24-, 32-, and 48-port sizes High-density - 24- and 48-port sizes Field configurable Maximum strength and durability construction Snap-in rear cable management bar (high-density design only)

F-Type Connector Feed-Thru Panels are available with either 1-GHz- or 3-GHz feed-thru (female-to-female) F-Type connectors. Panels are provided in 12-, 16, 24-, 32- and 48-port sizes.

High-density field-configurable panels are available in 24- and 48-port sizes. Panels provide the flexibility when field configuring using a variety of connectors including category 6A, 6, 5e and voice-grade high-density jacks as well as a wide range of fiber and audio/video multimedia modules.

24- and 48-port sizes. Field configurable - a variety of connector modules can be installed in any combinations. Can be used as a feed-thru interconnect when used with twisted-pair inline couplers. Maximum strength and durability construction. Accommodates both unscreened and screened twisted pair keystone jacks. Snap-in rear cable management bar.

High-density field-configurable 48-port panel provides 48-ports in a 1 RMS (1'75"H) panel. This high-density panel is the ideal solu-tion where rack space is limited and supports a variety of connectors including category 6A, 6, 5e and voice-grade high-density jacks as well as a wide range of fiber and audio/video multimedia modules.

High-density field-configurable angled panels have the added feature of angled design to help route patch cords to vertical rack or cabinet mounted cable management. This unique feature eliminates the need for horizontal cable management panels, which pro-vides additional rack space in high density applications. The panel provides the flexibility to field configure panels using a variety of connectors including category 6A, 6, 5e and voice-grade high-density jacks as well as a wide range of fiber and audio/video multime-dia modules.

Standard-Density Field-Configurable Multimedia Panels are available in 12-, 16-, 24-, 32- and 48-port sizes. Panels provide the ability to field configure panels using a variety of connectors including category 6A, category 6 and category 5e jacks as well as a wide range of multimedia modules.

12-Port Field-Configurable Multimedia Wall Mount Mini Panels are ideal for applications where space is at a premium. Panels are provided mounted to either an 89D bracket or in a hinged version, both allow for easy access to the back of the panel. These panels are designed to accept unscreened category 6A, 6 and 5e high-density jacks.

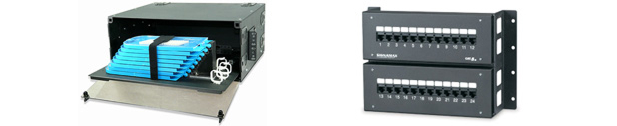

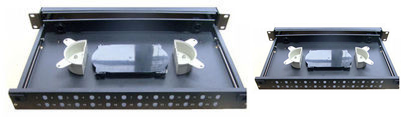

Signamax offers a range of economy optical fiber patch panels for SC and LC connections. These rack-mount panels are available in 48-port (48-, and 96-fiber) size based on standard Signamax optical fiber keystone jacks and are ideal where space is limited as compared to the standard-density optical fiber panels or enclosures. These high-density panels provide increased termination density due to more compact adapter population. High-density panels are equipped with rear cable management bar when there is a need to provide support for bulky cables and/or maintain required cable bend radii.

SC and LC connections Available in 48-port (48- and 96-fiber) size Based on standard Signamax optical fiber keystone jacks Equipped with rear cable management bar

Signamax offers a range of economy optical fiber patch panels for ST, SC, and LC connections. These rack-mount panels are available in 24- and 48-port (24-, 48-, and 96-fiber) sizes based on standard Signamax optical fiber keystone jacks and are ideal where space is limited as compared to the standard-density optical fiber panels or enclosures. These high-density panels provide increased termi-nation density due to more compact adapter population. High-density panels are equipped with rear cable management bar when there is a need to provide support for bulky cables and/or maintain required cable bend radii.

ST, SC, and LC connections Available in 24- and 48-port (24-, 48-, and 96-fiber) sizes Based on standard Signamax optical fiber keystone jacks Equipped with rear cable management bar

Signamax offers a range of economy optical fiber patch panels for ST, SC, and LC connections. These rack mount panels are available in 12- thru 48-port (12- thru 48-fiber) sizes based on standard Signamax optical fiber keystone jacks and are ideal where mounting space is limited.

ST, SC, and LC connections Available in 12- thru 48-port (12- thru 48-fiber) sizes Based on standard Signamax optical fiber keystone jacks

Signamax single-position termination tool is a versatile impact tool designed to terminate and cut twisted-pair cable conductors. Sig-namax multi-pair termination tool is a versatile impact tool designed to terminate and cut twisted-pair cable conductors and seat connecting blocks. The tools feature an ergonomically designed handle to provide a no-slip grip. Our single-position impact tool is available to terminate all Signamax key-stone jacks, 66 or 110 blocks and is spring-loaded and tension-adjustable. Replacement blades are available.

Signamax 4-pair termination tool is designed to work with the following Signamax MT-series keystone jacks:
KJ458MT-CA6C-xx (xx: WH, BK, BU, GN, GY, OR, RD, YE)
KJ458MT-C6C-xx (xx: WH, BK, BU, GN, GY, OR, RD, YE)
KJ458MT-C5E-xx (xx: WH, BK, BU, GN, GY, OR, RD, YE)
KJ126MT-C3U-xx (xx: WH, BK, BU, GN, GY, OR, RD, YE)
Simultaneous termination of all eight twisted-pair cable conductors along with trimming of conductor excess allows to save installa-tion time, provides reliable termination means in confined areas, while ensuring precise and consistent termination of all pairs due to the calibrated die drive mechanism.

Simultaneous termination of eight twisted-pair conductors along with conductor excess trimming Comfortable plastic handle grips Lightweight and compact, fits most tool pouches' compartments Replaceable die Tool and die are bright-colored - easy to find when left behind When not used, the tool may be stowed by using the integrated lock

Category 5e Connecting Blocks will accept 22- to 26-AWG solid conductors and are available in 3-, 4-, and 5-pair sizes. Each IDC connecting block is color coded for easy conductor placement. Connecting blocks are sold in packages of 10.

Simplified ordering is facilitated by the use of 110 Wiring Block Kits. Category 5e kits are available in 50-, 100-, and 300-pair sizes with 4-pair and 5-pair connecting blocks. These kits include everything needed to assemble a fully configured cross-connect field. Wiring block kits are available with or without mounting legs and are packaged with the appropriate number of designation labels and clear holders.

Category 6 Rack-Mount 110 Wiring Blocks are available in 96- and 192-pair configurations with or without connecting blocks. Patch cord management is provided by a rack mount patch cord and cable management trough (sold separately).

Category 6 Connecting Blocks will accept 22- to 26-AWG solid conductors and are available in a 4-pair size. IDC connecting block is color coded for easy conductor placement. Connecting blocks are sold in packages of 10.

Simplified ordering is facilitated by the use of 110 Wiring Block Kits. Category 6 kits are available in 48-, 96-, and 288-pair sizes with 4-pair connecting blocks. These kits include everything needed to assemble a fully configured cross-connect field. Wiring block kits are available with or without mounting legs and are packaged with the appropriate number of designation labels and clear holders.

Category 6 Wiring Blocks accommodate a range of conductor sizes from 22- to 26-AWG solid cable and are designed to exceed ANSI/TIA-568-C.2 category 6 specifications. Blocks are available in 48-, 96- and 288-pair sizes and can be ordered with mounting legs for routing cable behind the block, or without legs where space is limited.

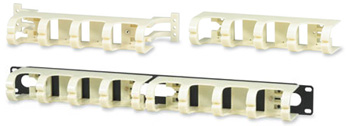

Used between wiring blocks, cable management troughs provide jumper and patch cord organization. Troughs are available with or without stand-off legs to match installation requirements. Cable management troughs rings feature a split ring design which facilitates easy insertion and maximum retention.

Wall mount 110 wiring blocks are available in 25-, 50-, and 100-pair sizes and are ideal for small voice and data cross-connect appli-cations. Blocks are pre-connectorized with 4- and 5-pair connecting blocks wired to male or female 25-pair Telco connectors.

Wall Mount Wiring Blocks are available in 100- and 300-pair sizes pre-connectorized with 3-, 4-, or 5-pair connecting blocks wired to male or female 50-position Telco connectors. Top or bottom cable entry is available with 3-foot cable stubs as a standard length. Other lengths are available.

For voice and data applications 66 Blocks are available in a 50-pair type. This block is designed for category 5e performance to support high-bandwidth applications.

For voice applications 66 Blocks are available pre-wired with one or two 25-pair Telco connectors. Blocks can be specified with male or female connectors. Blocks are designed for top cable entry.

Category 5e 110 Patch Cords are assembled using stranded cable that exceeds category 5e specifications. Patch cords are available with one-, two-, three-, and four-pair 110 plugs and are used for patching between 110 termination fields. All cords are 100% factory tested. Category 5e RJ-45/110 Patch Cords are available in four-pair configurations wired to T568B wiring scheme. RJ-45/110 Patch Cords are used for patching between equipment and 110 termination fields.

Category 5e Field-Installable 110 Plugs are available in 1-, 2-, 3-, and 4-pair sizes and accommodate 24- to 26-AWG stranded cable. Plugs are easily assembled in the field to provide the flexibility and quick termination of any length patch cord. The snap-together de-signed plugs are polarized to ensure a proper connection to the connecting blocks

Category 6 110 Patch Cords exceed performance specifications as defined in ANSI/TIA-568-C.2. Patch cords are available with four-pair 110 plugs and are used for patching between category 6 110 termination fields. Category 6 RJ-45/110 Patch Cords are available in four-pair configurations wired to T568B wiring scheme. RJ-45/110 Patch Cords are used for patching between equipment and cate-gory 6 110 termination fields. All cords are 100% factory performance tested.

Category 6 Field-Installable 110 Plug is available in a 4-pair size and accommodates 24- to 26-AWG stranded cable. The plug easily assembled in the field to provide the flexibility and quick termination of any length patch cord. The snap-together designed plugs are polarized to ensure a proper connection to the connecting blocks.

Signamax single-position termination tool is a versatile impact tool designed to terminate and cut twisted-pair cable conductors. Sig-namax multi-pair termination tool is a versatile impact tool designed to terminate and cut twisted-pair cable conductors and seat connecting blocks. The tools feature an ergonomically designed handle to provide a no-slip grip. Our single-position impact tool is available to terminate all Signamax key-stone jacks, 66 or 110 blocks and is spring-loaded and tension-adjustable. Replacement blades are available.

Signamax 4-pair termination tool is designed to work with the following Signamax MT-series keystone jacks:
KJ458MT-CA6C-xx (xx: WH, BK, BU, GN, GY, OR, RD, YE)
KJ458MT-C6C-xx (xx: WH, BK, BU, GN, GY, OR, RD, YE)
KJ458MT-C5E-xx (xx: WH, BK, BU, GN, GY, OR, RD, YE)
KJ126MT-C3U-xx (xx: WH, BK, BU, GN, GY, OR, RD, YE)
Simultaneous termination of all eight twisted-pair cable conductors along with trimming of conductor excess allows to save installa-tion time, provides reliable termination means in confined areas, while ensuring precise and consistent termination of all pairs due to the calibrated die drive mechanism.

Simultaneous termination of eight twisted-pair conductors along with conductor excess trimming Comfortable plastic handle grips Lightweight and compact, fits most tool pouches' compartments Replaceable die Tool and die are bright-colored - easy to find when left behind When not used, the tool may be stowed by using the integrated lock

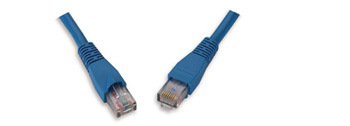

Signamax Connectivity Systems category 6A patch cords are designed to meet 10 Gigabit Ethernet IEEE 802.3an rev. 1.0 transmis-sion requirements, and are guaranteed to meet ANSI/TIA-568-C.2 channel performance. Cords are 100% transmission tested and support category 6A 100-meter channel performance. Assembled in a controlled environment using advanced manufacturing tech-niques to insure consistent quality these patch cords provide reliable performance when mated with our category 6A connecting hardware and deliver supreme performance for network cabling systems. Signamax category 6A patch cords incorporate slim-profile snag-free boots, which protect the plug latch, and a flexible, but durable cable strain relief and are compatible with both T568A and T568B wiring schemes. Patch cords are manufactured using ETL-verified 26-AWG stranded cable designed for greater flexibility and service life.

Designed to meet 10G IEEE 802.3an transmission requirements Guaranteed to meet TIA-568-C.2 performance 100% factory transmission tested per TIA-568-C.2 specifications Support category 6A 100-meter channel performance Screening provides 100 % protection against ANEXT Rated for at least 750 plug insertions T568A/B wiring scheme compatible Contact design provides enhanced plug-to-jack connection integrity Slim-profile snag-free boots with durable flexible cable strain relief ETL verified 26 AWG stranded cable

Signamax Connectivity Systems category 6A patch cords are designed to meet 10 Gigabit Ethernet IEEE 802.3an rev. 1.0 transmis-sion requirements, and are guaranteed to meet ANSI/TIA-568-C.2 channel performance. Cords are 100% transmission tested and support category 6A 100-meter channel performance. Assembled in a controlled environment using advanced manufacturing tech-niques to insure consistent quality these patch cords provide reliable performance when mated with our category 6A connecting hardware and deliver supreme performance for network cabling systems. Signamax category 6A patch cords incorporate slim-profile snag-free boots, which protect the plug latch, and a flexible, but durable cable strain relief and are compatible with both T568A and T568B wiring schemes. Patch cords are manufactured using ETL-verified 26-AWG stranded cable designed for greater flexibility and service life.

Designed to meet 10G IEEE 802.3an transmission requirements Guaranteed to meet TIA-568-C.2 performance 100% factory transmission tested per TIA-568-C.2 specifications Support category 6A 100-meter channel performance Rated for at least 750 plug insertions T568A/B wiring scheme compatible Contact design provides enhanced plug-to-jack connection integrity Slim-profile snag-free boots with durable flexible cable strain relief ETL verified 26 AWG stranded cable Available in six colors

Category 6 Crossover Patch Cords are assembled using stranded cable that exceeds TIA/EIA-568-B performance specifications. Crossover Patch Cords are used for connecting uplink ports on both hubs and switches. All cables are 100% factory tested.

Signamax continues to set the standard for high-quality, high-performance patch cords with two series of category 6 patch cords. Our category 6 cords are 100% transmission tested to component performance as specified in ANSI/TIA-568-C.2. Assembled in a con-trolled environment using advanced manufacturing techniques to ensure consistent quality, these patch cords provide exceptional performance when mated with our category 6 screened connecting hardware. Signamax category 6 screened patch cords incorporate slim-profile snag-free boots, which protect the plug latch, and a flexible, but durable cable strain relief and are compatible with both T568A and T568B wiring schemes. Category 6 screened patch cords are manufactured using ETL-verified stranded cable designed for greater flexibility and service life and are available in a variety of stan-dard lengths.

Transmission performance exceeds TIA/EIA-568-C.2 component performance specifications 100% factory transmission tested ScTP (FTP) construction protects against most EMI sources Single shielded ETL verified 26 AWG stranded cable Rated for at least 750 plug insertions Enhanced plug-to-jack connection integrity T568A/B wiring scheme compatible Slim-profile snag-free boots Durable flexible cable strain relief

Signamax continues to set the standard for high-quality, high-performance patch cords with two series of category 6 patch cords. Our category 6 cords are 100% transmission tested to component performance as specified in ANSI/TIA-568-C.2. Assembled in a con-trolled environment using advanced manufacturing techniques to ensure consistent quality, these patch cords provide exceptional performance when mated with our category 6 connecting hardware. Our Channel-Level Category 6 cords provide an excellent level of performance and are designed for less demanding applications. These cords are 100% tested in a 4-connector channel configuration to ensure consistent performance. Signamax category 6 patch cords incorporate slim-profile snag-free boots, which protect the plug latch, and a flexible, but durable cable strain relief and are compatible with both T568A and T568B wiring schemes. Category 6 Channel-Level patch cords are manu-factured using ETL-verified stranded cable designed for greater flexibility and service life and are available in eight popular colors and a variety of standard lengths.

Transmission performance per TIA/EIA-568-C.2 channel performance specifications 100% factory tested to 4-connector channel performance ETL verified 26-AWG stranded cable Rated for at least 750 plug insertions Enhanced plug-to-jack connection integrity Slim-profile snag-free boots with durable flexible cable strain relief T568A/B wiring scheme compatible

Signamax continues to set the standard for high-quality, high-performance patch cords with two series of category 6 patch cords. Our category 6 cords are 100% transmission tested to component performance as specified in ANSI/TIA-568-C.2. Assembled in a con-trolled environment using advanced manufacturing techniques to ensure consistent quality, these patch cords provide exceptional performance when mated with our category 6 connecting hardware. Signamax category 6 patch cords incorporate slim-profile snag-free boots, which protect the plug latch, and a flexible, but durable cable strain relief and are compatible with both T568A and T568B wiring schemes. Category 6 patch cords are manufactured using ETL-verified stranded cable designed for greater flexibility and service life and are available in eight popular colors and a variety of standard lengths.

Transmission performance per TIA/EIA-568-C.2 performance specifications ETL verified 26-AWG stranded cable 100% factory transmission tested to component level performance per TIA/EIA-568-C.2 Rated for at least 750 plug insertions Enhanced plug-to-jack connection integrity Slim-profile snag-free boots with durable flexible cable strain relief T568A/B wiring scheme compatible

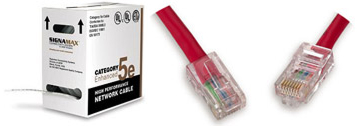

Category 5e Crossover Patch Cords are assembled using stranded cable that exceeds TIA/EIA-568-B performance specifications. Crossover Patch Cords are used for connecting uplink ports on both hubs and switches. All cables are 100% factory tested.

Category 5e screened cords are 100% transmission tested to component performance as specified in ANSI/TIA-568-C.2. Assembled in a controlled environment using advanced manufacturing techniques to ensure consistent quality, these patch cords provide excep-tional performance when mated with our category 5e connecting hardware and deliver supreme performance for network cabling sys-tems. Category 5e patch cords incorporate slim-profile snag-free boots, which protect the plug latch, and a flexible, but durable cable strain relief and are compatible with both T568A and T568B wiring schemes. Patch cords are manufactured using ETL-verified 26-AWG stranded cable designed for greater flexibility and service life and are available in seven standard lengths.

Transmission performance per TIA/EIA-568-C.2 performance specifications ETL verified 26-AWG stranded cable 100% factory transmission tested to component level performance per TIA/EIA-568-C.2 Rated for at least 750 plug insertions Enhanced plug-to-jack connection integrity Slim-profile snag-free boots with durable flexible cable strain relief T568A/B wiring scheme compatible

Signamax category 5e channel-level cords provide an excellent level of channel performance and are designed for less demanding applications. These cords are 100% tested in a 4-connector channel configuration to ensure consistent performance. Category 5e patch cords incorporate slim-profile snag-free boots, which protect the plug latch, and a flexible, but durable cable strain relief and are compatible with both T568A and T568B wiring schemes. Patch cords are manufactured using ETL-verified 26-AWG stranded cable designed for greater flexibility and service life and are available in eight popular colors and in nine standard lengths.

Transmission performance per TIA/EIA-568-C.2 channel performance specifications ETL verified 26-AWG stranded cable 100% factory transmission tested to channel performance per TIA/EIA-568-C.2 Rated for at least 750 plug insertions Enhanced plug-to-jack connection integrity Slim-profile snag-free boots with durable flexible cable strain relief T568A/B wiring scheme compatible

Category 5e unscreened cords are 100% transmission tested to component performance as specified in ANSI/TIA-568-C.2. Assem-bled in a controlled environment using advanced manufacturing techniques to ensure consistent quality, these patch cords provide exceptional performance when mated with our category 5e connecting hardware and deliver supreme performance for network ca-bling systems. Category 5e patch cords incorporate slim-profile snag-free boots, which protect the plug latch, and a flexible, but du-rable cable strain relief and are compatible with both T568A and T568B wiring schemes. Patch cords are manufactured using ETL-verified 26-AWG stranded cable designed for greater flexibility and service life and are available in eight popular colors and in seven standard lengths.

Transmission performance per TIA/EIA-568-C.2 performance specifications ETL verified 26-AWG stranded cable 100% factory transmission tested to component level performance per TIA/EIA-568-C.2 Rated for at least 750 plug insertions Enhanced plug-to-jack connection integrity Slim-profile snag-free boots with durable flexible cable strain relief T568A/B wiring scheme compatible

Category 5e 110 Patch Cords are assembled using stranded cable that exceeds category 5e specifications. Patch cords are available with one-, two-, three-, and four-pair 110 plugs and are used for patching between 110 termination fields. All cords are 100% factory tested. Category 5e RJ-45/110 Patch Cords are available in four-pair configurations wired to T568B wiring scheme. RJ-45/110 Patch Cords are used for patching between equipment and 110 termination fields.

Category 5e Field-Installable 110 Plugs are available in 1-, 2-, 3-, and 4-pair sizes and accommodate 24- to 26-AWG stranded cable. Plugs are easily assembled in the field to provide the flexibility and quick termination of any length patch cord. The snap-together de-signed plugs are polarized to ensure a proper connection to the connecting blocks.

Category 6 110 Patch Cords exceed performance specifications as defined in ANSI/TIA-568-C.2. Patch cords are available with four-pair 110 plugs and are used for patching between category 6 110 termination fields. Category 6 RJ-45/110 Patch Cords are available in four-pair configurations wired to T568B wiring scheme. RJ-45/110 Patch Cords are used for patching between equipment and cate-gory 6 110 termination fields. All cords are 100% factory performance tested.

Category 6 Field-Installable 110 Plug is available in a 4-pair size and accommodates 24- to 26-AWG stranded cable. The plug easily assembled in the field to provide the flexibility and quick termination of any length patch cord. The snap-together designed plugs are polarized to ensure a proper connection to the connecting blocks.

Category 5e Industrial Grade Plug Assemblies are available in an unscreened (UTP) and screened (FTP) versions. These field-installable connectors are supplied with an 8P/8C plug, industrial housing and a protective cap. Plugs are easily assembled in the field and accommodate 24- to 26-AWG stranded cable.

Signamax category 6 industrial-grade patch cords provide the same high-level transmission performance as other Signamax cords in-tended for regular commercial applications, but with a robustness capable to withstand harsh environments typical to factory floors, chemical, food processing plants, etc. Unique IP67-rated plug housing design guarantees superb protection against liquid and solid agents' penetration, against vibrations, and for a long-life reliable performance. Cords are furnished with dust caps on the protected ends to prevent exposure of unplugged connectors.

Industrial-grade plugs are IP67-rated (complete protection against dust, protection against the effects of temporary immersion up to 1 m [3 ft]) Transmission performance exceeds ANSI/TIA-568-C.2 category 6 performance specifications Available in IP67-plug-to-IP67-plug and IP67-plug-to-modular plug designs 100% factory transmission tested to component performance per ANSI/TIA-568-C.2 specifications Durable flexible cable strain relief T568A/B wiring scheme compatible Slim-profile snag-free boots on modular plugs of the IP67-plug-to-modular plug design Contact design provides enhanced plug to jack connection integrity Industrial-grade plugs are equipped with dust caps to prevent exposure of unplugged connectors Rated for at least 750 plug insertions providing for the highest level of system reliability

Signamax category 5e industrial-grade patch cords provide the same high-level transmission performance as other Signamax cords intended for regular commercial applications, but with robustness capable to withstand harsh environments typical to factory floors, chemical, food processing plants, etc. Unique IP67-rated plug housing design along with industrial-grade stranded cable guarantee superb protection against liquid and solid agents' penetration, against vibrations, and for a long-life reliable performance. Cords are furnished with dust caps on the protected ends to prevent exposure of unplugged connectors.

IP67-rated industrial-grade plugs with durable flexible cable strain relief Available in IP67-plug-to-IP67-plug and IP67-plug-to-modular plug designs Industrial-grade polyurethane (PUR) NEC/CEC VW-1 rated cable Industrial-grade plugs are equipped with dust caps to prevent exposure of unplugged connectors Transmission performance exceeds ANSI/TIA-568-C.2 category 5e performance specifications 100% factory transmission tested to component performance per ANSI/TIA-568-C.2 specifications T568A/B wiring scheme compatible Slim-profile snag-free boots on modular plugs of the IP67-plug-to-modular plug design Contact design provides enhanced plug to jack connection integrity Rated for at least 750 plug insertions providing for the highest level of system reliability

Assemblies are constructed using category 3 compliant cable in both riser (PVC) and plenum versions. Cables are available in single-ended male or female, double-ended male or female, and double-ended male/female configurations. Telco connector hoods are avail-able in 90- or 180-degree cable exit.

Category 5e 25-Pair Telco Assemblies are constructed using category 5e compliant cable in both riser (PVC) and plenum versions. Cables are available in single-ended male or female, double-ended male or female, and double-ended male/female configurations. Telco connector hoods are available in 90-, 110-, or 180-degree cable exit.

This ratchet-style crimp tool that cuts, strips cable, and crimps modular plugs on both round or flat cables. The ratchet design main-tains accurate alignment with the plug for a precision crimp. The tool will crimp 4- and 6-position (RJ-12-style) and 8-position (RJ-45-style) plugs.

Modular Plugs are available for termination of patch cords. All plugs have contacts plated with 50 microinches of gold and are de-signed for termination of stranded or solid cable.

Snag-Proof Strain Relief Boots are available in a variety of colors. The boots protect against damage to the connector latch and help maintain the proper bend radius of the cable to ensure performance.

Pre-terminated Category 5e Trunk Assemblies help to reduce significantly both time and cost of a cabling installation. Terminated and tested in a controlled manufacturing environment, cut to the customer pre-ordered lengths, and ready to install in a patch panel, trunk assemblies eliminate all these operations in the field making your job easy and efficient. Trunk cable assemblies can be provided in an unscreened (U/UTP) and screened (F/UTP) versions in a jack-to-jack, jack-to-plug, or jack-to-blunt cut configurations to support the widest range of applications. Cables can be used with any Signamax field-configurable patch panel (screened trunk cables cannot be used with 48U-HDMMP-1R).

Ready-to-use product - cable bundles are ready for installation and require no additional termination operations except the one-ended designs Solid cable and keystone jacks used in the assembly meet and exceed category 5e specifications Pre-tested at the factory per ANSI/TIA-568-C.1 requirements All cable legs are labeled at both ends for easy identification and aligning in the field Each cable bundle is enclosed in a CMR- or CMP-rated mesh sleeve that retains the bundle and protects it during installation Mesh sleeve is fixed by heat-shrink tubing that can be used as an anchor point when cable pulling is needed Compatible with all Signamax field-configurable patch panels (screened trunk cables cannot be used with 48U-HDMMP-1R)

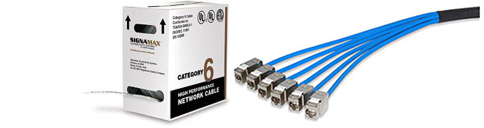

Category 6 Pre-terminated Trunk Assemblies help to reduce significantly both time and cost of a category 6 ca-bling installation. Terminated and tested in a controlled manufacturing environment, cut to the customer pre-ordered lengths, and ready to install in a patch panel, trunk assemblies eliminate all these operations in the field making your job easy and efficient. Trunk cable assemblies can be provided in an unscreened (U/UTP) and screened (F/UTP) versions in either in a jack-to-jack, jack-to-plug, or jack-to-blunt cut configurations to support the widest range of applications. Cables can be used with any field-configurable patch panel (screened assemblies are not compatible with 48U-HDMMP-1R panels only).

Ready-to-use product - cable bundles are ready for installation and require no additional termina-tion operations except the one-ended designs Solid cable and keystone jacks used in the assembly meet and exceed category 6 specifications Pre-tested at the factory per ANSI/TIA-568-C.1 requirements All cable legs are labeled at both ends for easy identification and aligning in the field Each cable bundle is enclosed in a CMR- or CMP-rated mesh sleeve that retains the bundle and pro-tects it during installation Mesh sleeve is fixed by heat-shrink tubing that can be used as an anchor point when cable pulling is needed Compatible with all Signamax field-configurable patch panels (screened cables are not compatible with 48U-HDMMP-1R only)

Category 6A Pre-terminated Trunk Assemblies help to reduce significantly both time and cost of a cabling installa-tion. Terminated and tested in a controlled manufacturing environment, cut to the customer pre-ordered lengths, and ready to install in a patch panel, trunk assemblies eliminate all these operations in the field making your job easy and efficient. Trunk cable assemblies can be provided in an unscreened (U/UTP) and screened (F/UTP) ver-sions in a jack-to-jack or jack-to-blunt cut configurations to support the widest range of applications. Cables can be used with any field-configurable patch panel (screened assemblies are not compatible with 48U-HDMMP-1R pan-els only).

Ready-to-use product - cable bundles are ready for installation and require no additional termina-tion operations except the one-ended designs Solid cable and keystone jacks used in the assembly meet and exceed category 6A specifications Pre-tested at the factory per ANSI/TIA-568-C.1 requirements All cable legs are labeled at both ends for easy identification and aligning in the field Each cable bundle is enclosed in a CMR- or CMP-rated mesh sleeve that retains the bundle and pro-tects it during installation Mesh sleeve is fixed by heat-shrink tubing that can be used as an anchor point when cable pulling is needed Compatible with all Signamax field-configurable patch panels (screened cables are not compatible with 48U-HDMMP-1R only)

Category 5e 4-pair screened solid conductor cable is ETL verified, manufactured to the highest quality standards, and exceeds all per-formance specifications for category 5e as defined in ANSI/TIA-568-C.2, ISO/IEC 11801 2nd Edition, CENELEC EN 50173-1, and CENELEC EN 50288. Cable is available in riser (UL CMR) version and is supplied in "tangle-free" cartons of 305 m (1,000 ft). Cable is RoHS compliant per European Union Directive 2002/95/EC.

Transmission performance exceeds standard category 5e requirements Aluminum foil screen/tinned copper drain wire 1,000-foot "tangle-free" cartons

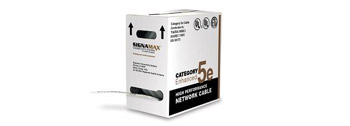

Category 5e 4-pair solid conductor cable is ETL verified, manufactured to the highest quality standards, and exceeds all performance specifications for category 5e as defined in ANSI/TIA-568-C.2, ISO/IEC 11801 2nd Edition, CENELEC EN 50173-1, and CENELEC EN 50288. Cable is available in plenum (UL CMP) and riser (UL CMR) versions and is supplied in "tangle-free" cartons of 305 m (1,000 ft). Cable is available in a variety of popular colors. Cable is RoHS compliant per European Union Directive 2002/95/EC.

Transmission performance exceeds standard category 5e requirements 1,000-foot "tangle-free" cartons Available in four colors

Category 6 4-pair screened solid conductor cable is ETL verified, manufactured to the highest quality standards, and exceeds all per-formance specifications for category 6 as defined in ANSI/TIA-568-C.2, ISO/IEC 11801 2nd Edition, CENELEC EN 50173-1, and CENELEC EN 50288. Cable is available in riser (UL CMR) version and supplied in "tangle-free" cartons of 305 m (1,000 ft). Cable is RoHS compliant per European Union Directive 2002/95/EC.

Transmission performance exceeds standard category 6 requirements 1,000-foot "tangle-free" cartons Aluminum foil screen/tinned copper drain wire

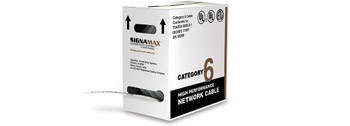

Category 6 4-pair solid conductor cable is ETL verified, manufactured to the highest quality standards, and exceeds all performance specifications for category 6 as defined in ANSI/TIA-568-C.2, ISO/IEC 11801 2nd Edition, CENELEC EN 50173-1, and CENELEC EN 50288. Cable is available in plenum (UL CMP) and riser (UL CMR) versions and is supplied in "tangle-free" cartons of 305 m (1,000 ft). Cable is available in a variety of popular colors. Cable is RoHS compliant per European Union Directive 2002/95/EC.

Transmission performance exceeds standard category 6 requirements 1,000-foot "tangle-free" cartons Available in four colors
